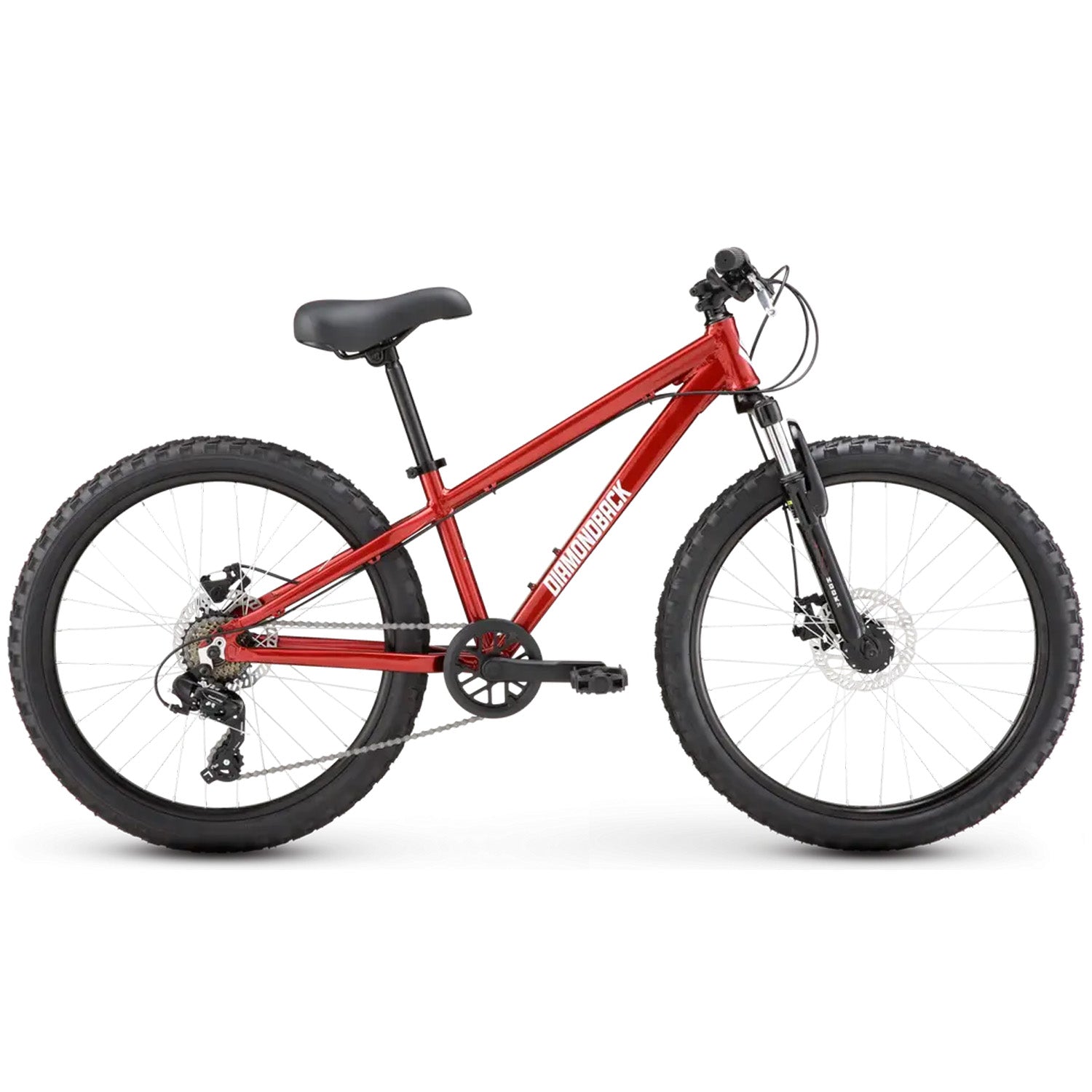

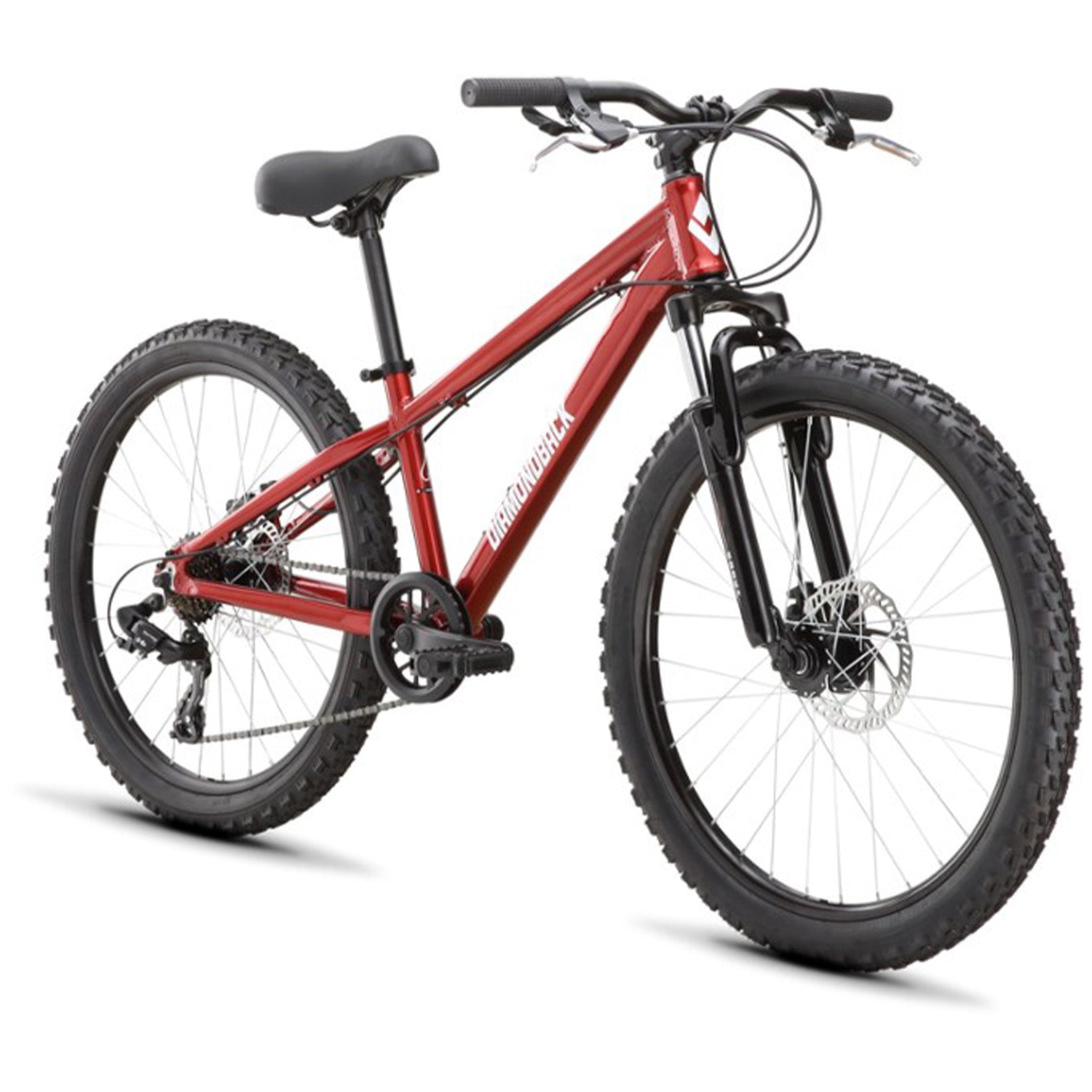

Diamondback Hook 24" Youth Mountain Bike, Red Gloss, 7 Speed
SKU: 210000016542
$399.99
Unit price
/
Unavailable
By Diamondback
White glove delivery is our premium service that provides exceptional care and attention for Cervélo bikes. What does white glove delivery include?
- Assemble your Bike: build to your specifications
- Secure delivery: Items are transported up to 300 miles using dedicated vehicles to your address
- Delivery Fees and Time: We will confirm delivery fees (up to $250) and date and time.
- Expert handling: Items are unloaded and placed in the desired location
- Unpacking: Items are unpacked and any excess packaging material is disposed
Couldn't load pickup availability
Description
If you enjoy being outside, training, and riding on loose or muddy terrain, the Diamondback Hook is just the type of bicycle you need.
Specs Build
| Frame | 6061 T-6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger |
|---|---|

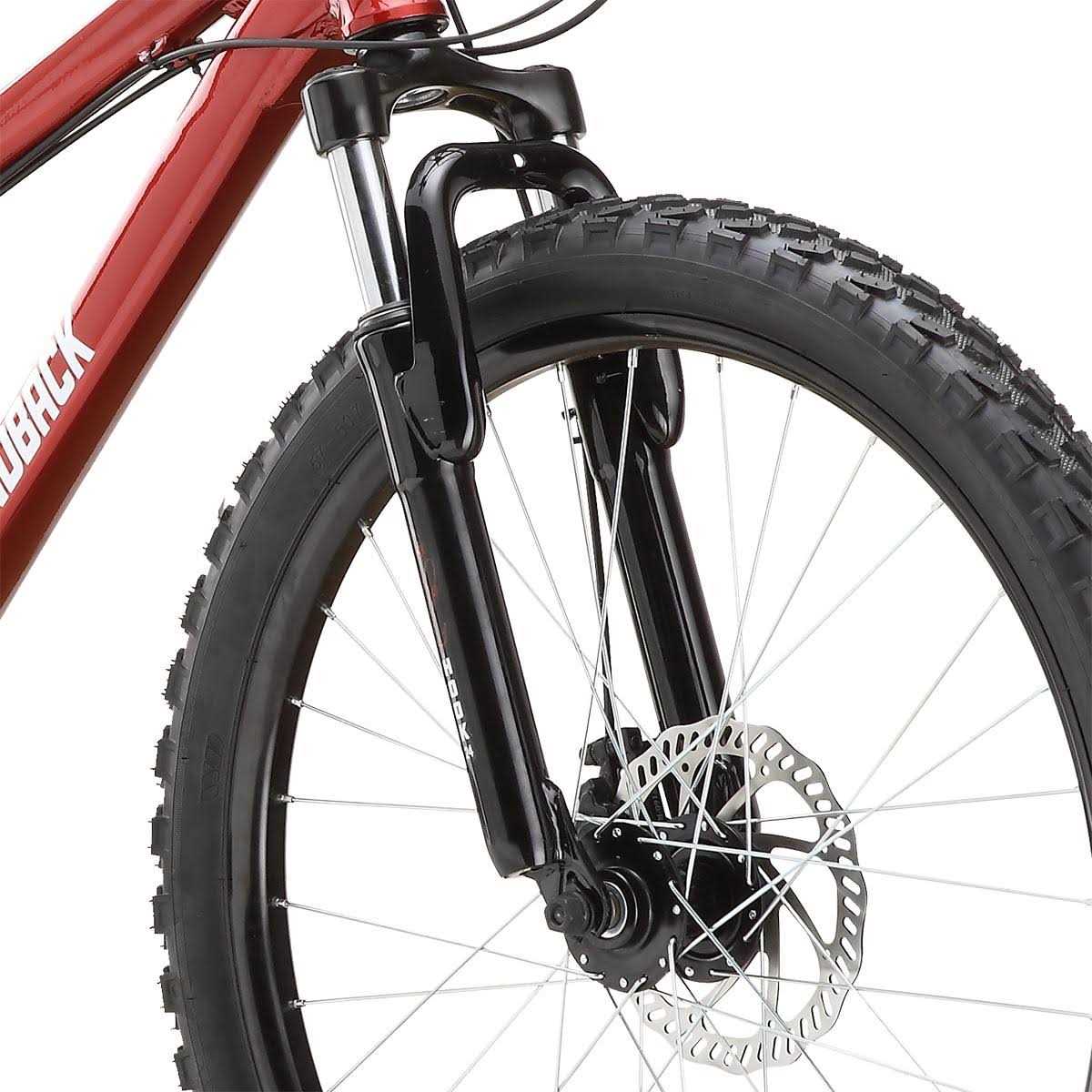

| Fork | Zoom 386A MTB Suspension Fork, 50mm of Travel, 9mm QR Travel 50mm |
| Shock | N/A |
| Bottom Bracket | Cartridge Bearing, 119mm Spindle |
| Headset | 1 1/8" Internal Cartridge Bearing |
| Stem | Alloy Youth Stem, 50mm Length |

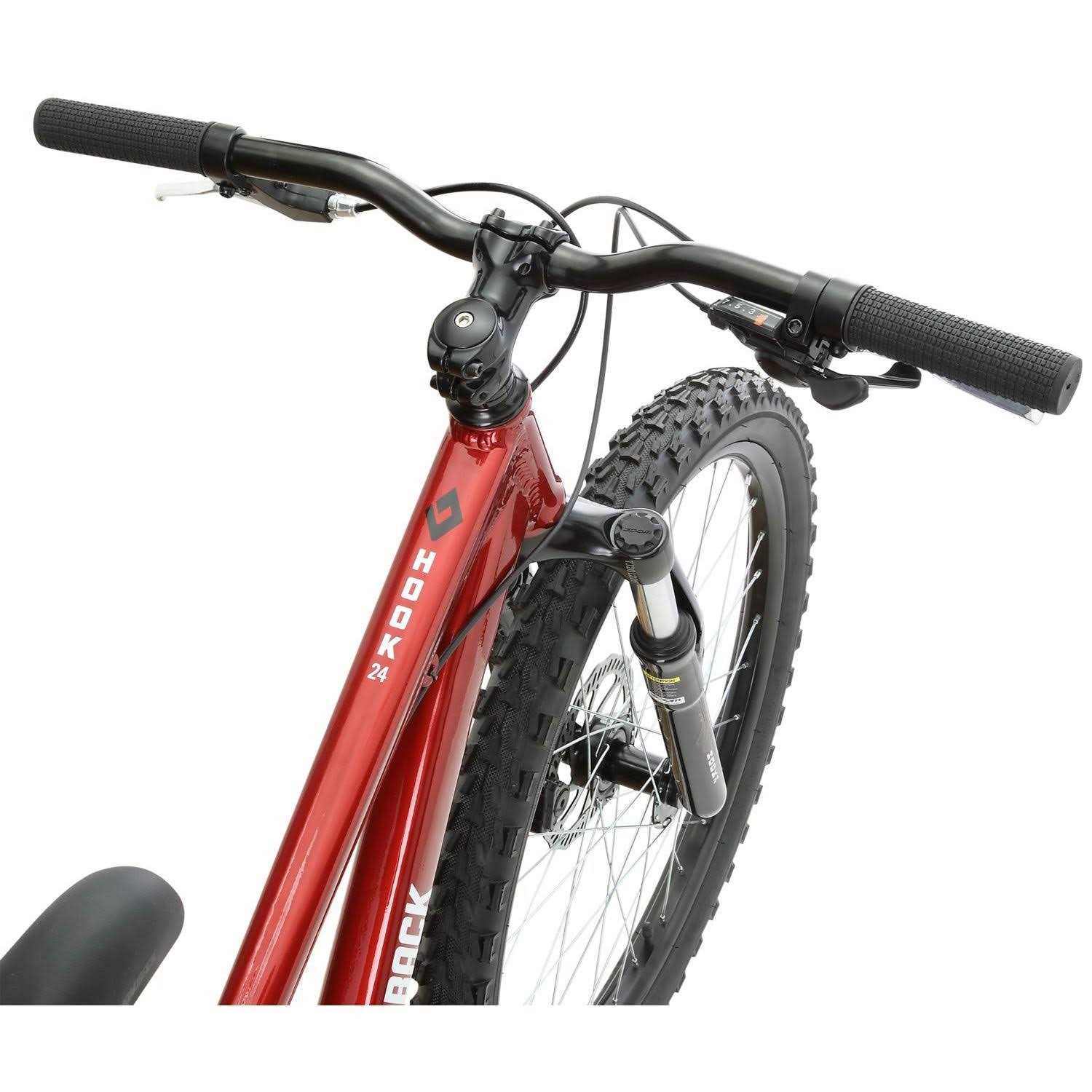

| Handlebar | Aluminum Youth MTB, 580mm Wide, 18mm Rise, 25.4 Bar Bore |
| Saddle | Cionlli Youth MTB Saddle |
| Seatpost | Aluminum 27.2mm PostType: Rigid |
| Pedals | DB 806 Resin Platform |
| Grips | Youth MTB Grip, 110mm |

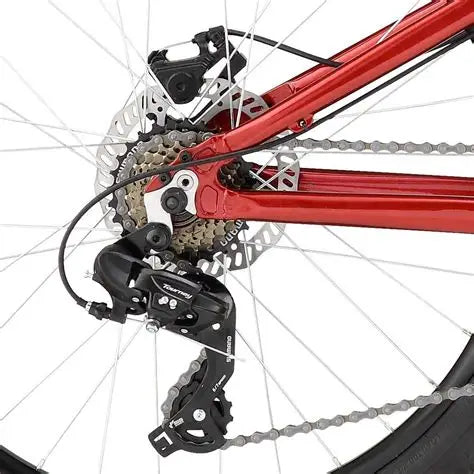

| Rear Derailleur | Shimano Tourney TY300, 7 Speed |
| Front Derailleur | N/A |
| Crank | Aluminum Arm, w/ 28T Steel Single Ring, 152mm |
| Shifters | Shimano M315 Tigger Shifter |
| Cassette | shimano TZ500, 14-28T |
| Chain | KMC Z7, 7 Speed |
| Brakes | Mechanical Disc Type: Mechanical Disc |
| Brake Levers | MTB Disc Brake Lever, Alloy Arm |
| Rear Derailleur | Shimano Tourney TY300, 7 Speed |
| Front Derailleur | N/A |
| Crank | Aluminum Arm, w/ 28T Steel Single Ring, 152mm |
| Shifters | Shimano M315 Tigger Shifter |
| Cassette | shimano TZ500, 14-28T |
| Chain | KMC Z7, 7 Speed |
| Brakes | Mechanical Disc Type: Mechanical Disc |
| Brake Levers | MTB Disc Brake Lever, Alloy Arm |
| Rims | 32h Diamondback Doublewall |
| Spokes | 14g Stainless Steel |
| Front Hub | KT 32h Aluminum w/ CNC Disc Mount, 100mm |
| Rear Hub | KT 32h Aluminum w/ CNC Disc Mount, 135mm |
| Tires | MTB Wanda Tire 24x2.25" |
White glove delivery is our premium service that provides exceptional care and attention for Cervélo bikes. What does white glove delivery include?
- Assemble your Bike: build to your specifications
- Secure delivery: Items are transported up to 300 miles using dedicated vehicles to your address
- Delivery Fees and Time: We will confirm delivery fees (up to $250) and date and time.
- Expert handling: Items are unloaded and placed in the desired location
- Unpacking: Items are unpacked and any excess packaging material is disposed
If you enjoy being outside, training, and riding on loose or muddy terrain, the Diamondback Hook is just the type of bicycle you need.
Specs Build
| Frame | 6061 T-6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger |
|---|---|
| Fork | Zoom 386A MTB Suspension Fork, 50mm of Travel, 9mm QR Travel 50mm |
| Shock | N/A |
| Bottom Bracket | Cartridge Bearing, 119mm Spindle |
| Headset | 1 1/8" Internal Cartridge Bearing |
| Stem | Alloy Youth Stem, 50mm Length |
| Handlebar | Aluminum Youth MTB, 580mm Wide, 18mm Rise, 25.4 Bar Bore |
| Saddle | Cionlli Youth MTB Saddle |
| Seatpost | Aluminum 27.2mm PostType: Rigid |
| Pedals | DB 806 Resin Platform |
| Grips | Youth MTB Grip, 110mm |
| Rear Derailleur | Shimano Tourney TY300, 7 Speed |
| Front Derailleur | N/A |
| Crank | Aluminum Arm, w/ 28T Steel Single Ring, 152mm |
| Shifters | Shimano M315 Tigger Shifter |
| Cassette | shimano TZ500, 14-28T |
| Chain | KMC Z7, 7 Speed |
| Brakes | Mechanical Disc Type: Mechanical Disc |
| Brake Levers | MTB Disc Brake Lever, Alloy Arm |
| Rear Derailleur | Shimano Tourney TY300, 7 Speed |
| Front Derailleur | N/A |
| Crank | Aluminum Arm, w/ 28T Steel Single Ring, 152mm |
| Shifters | Shimano M315 Tigger Shifter |
| Cassette | shimano TZ500, 14-28T |
| Chain | KMC Z7, 7 Speed |
| Brakes | Mechanical Disc Type: Mechanical Disc |
| Brake Levers | MTB Disc Brake Lever, Alloy Arm |
| Rims | 32h Diamondback Doublewall |
| Spokes | 14g Stainless Steel |
| Front Hub | KT 32h Aluminum w/ CNC Disc Mount, 100mm |
| Rear Hub | KT 32h Aluminum w/ CNC Disc Mount, 135mm |
| Tires | MTB Wanda Tire 24x2.25" |
