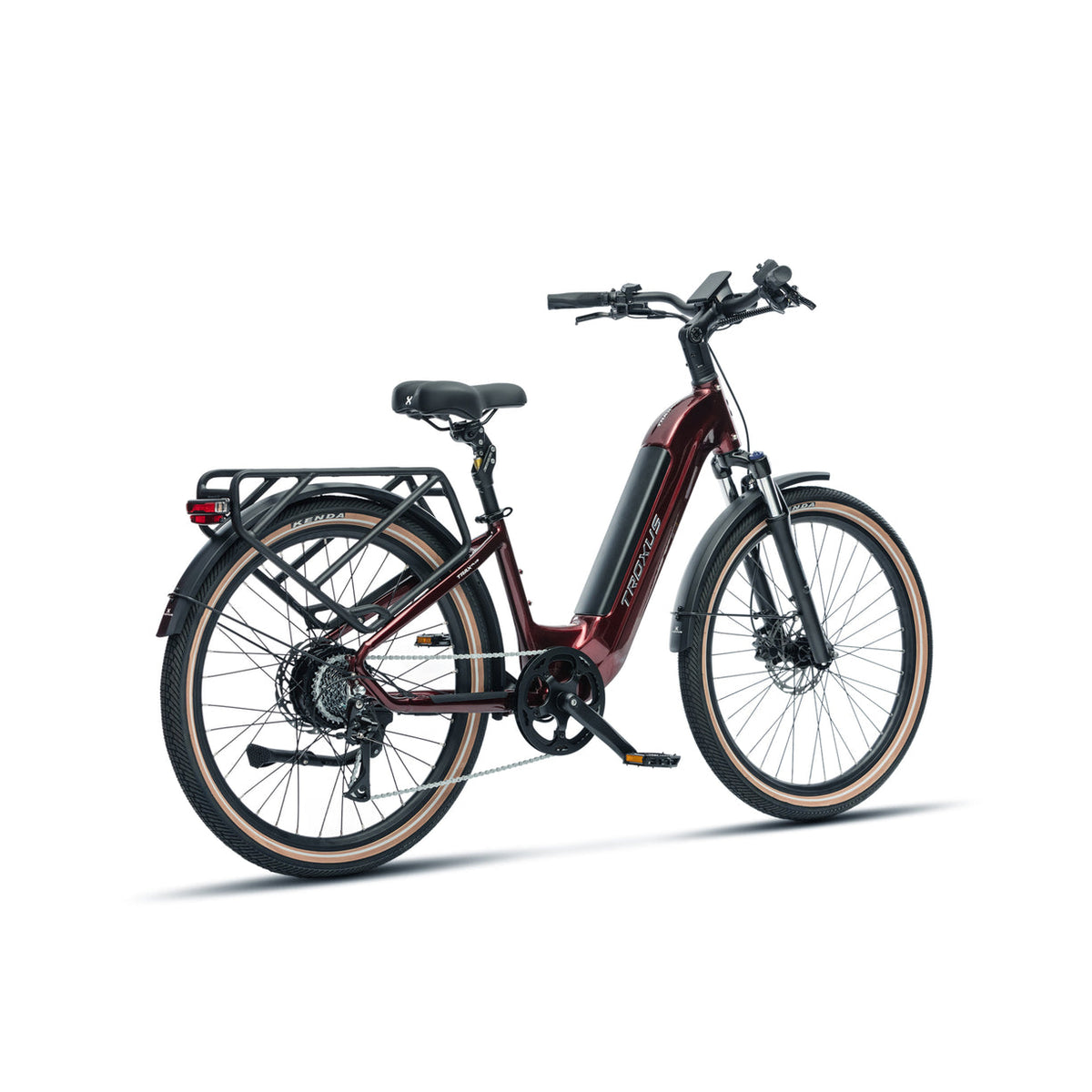

2026 Troxus Trax Plus St 27.5" Tire eBike, 500 Watt 48V 15 AH, Metallic Red

SKU: 210000026745
$3,199.99
By Troxus
No sales tax on items shipped out of Oklahoma
White Glove Delivery Service

White glove delivery is our premium service that provides exceptional care and attention for Cervélo bikes. What does white glove delivery include?

  • Assemble your Bike: build to your specifications
  • Secure delivery: Items are transported up to 300 miles using dedicated vehicles to your address
  • Delivery Fees and Time: We will confirm delivery fees (up to $250) and date and time.
  • Expert handling: Items are unloaded and placed in the desired location
  • Unpacking: Items are unpacked and any excess packaging material is disposed
Returns & Shipping Fees

White glove delivery is our premium service that provides exceptional care and attention for Cervélo bikes. What does white glove delivery include?

  • Assemble your Bike: build to your specifications
  • Secure delivery: Items are transported up to 300 miles using dedicated vehicles to your address
  • Delivery Fees and Time: We will confirm delivery fees (up to $250) and date and time.
  • Expert handling: Items are unloaded and placed in the desired location
  • Unpacking: Items are unpacked and any excess packaging material is disposed
Description

IN-STORE PICKUP ONLY

Take control of the streets and your comfort, while you take the "grind" out of the daily grind. Using a powerful Bafang® 500W hub motor and switchable torque and cadence sensors, you'll have power to cruise and the ability to choose how you want to. Comfort is built in with ergonomic component design, as well as suspension. And safety is not an afterthought, with built-in lighting, so you can feel confidently safe on every ride.

High-end Quality Components

  • Bafang® 500W Hub Motor
  • UL 2771 Certified, 48V/15Ah (720Wh) with Samsung® Cells
  • Tektro® Hydraulic Disc Brakes
  • Shimano® 8-speed shifting
  • Color display
  • Integrated Lighting
  • Smooth Welding

OVERVIEW

  • 28 mph Max Speed
  • Up to 70 Miles per charge
  • 500W Bafang® Hub Motor
  • 48V 15Ah (1,440 Wh) Samsung® Cells
  • 350 lbs Payload capacity
  • Suspension Seatpost

 Size: Medium

E-system
MOTOR Bafang® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
BATTERY UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/15Ah (720Wh) with Samsung® Cells
DISPLAY Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote
THROTTLE Thumb Throttle on Handlebar
SENSOR Switchable Torque And Cadence Sensor Modes
PEDAL ASSIST 0~5 Level Pedal Assist
CHARGER 2A / 100-240V Input / 54.6V Output
LIGHTS 80 Lux Front Light, Rear Light w/ Turn & Hazard Signals
CONTROLLER 48Vx18A/12V
Components
FRAME Aluminum Frame
FORK Zoom® Front Suspension Fork, 80mm Travel
CHAIN KMC® 1/2"x3/32"
CRANKSET Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 170mm
REAR DERAILLEUR Shimano® RD-M310-L, Altus, 8-Speed
CASSETTE Shimano® 8-Speed, 12-32T
SHIFTER Shimano® 8-Speed
BOTTOM BRAKCKET SET Square Taper Sealed Bearings, Torque & Cadence Sensors Included
TIRES KENDA® 27.5"x2.2", w/ Reflective Stripes, Puncture-Resistant, E-50 Rated
FRONT HUB Alloy, 36H, 100mm, 3/8"Axle w/ Nuts
REAR HUB Bafang® 48V 500W/ 28 MPH. 65Nm
RIMS Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", w/ Eyelets
SPOKES Stainless 13G. Front / 12G. Rear
BRAKES Tektro® Hydraulic, w/ Brake Sensors
ROTORS 180mm / 180mm
SADDLE Troxus Comfort
SEAT POST Troxus w/ Suspension, Alloy 30.9x360mm, Adjustable
SEAT POST CLAMP Alloy, 35mm w/ Quick Release
STEM Zoom® Alloy, Forged, Adjustable, Ext. 90mm
HANDLEBAR Zoom® Alloy, 31.8mmx620mm, 35˚ Backsweep
GRIPS Ergonomic Comfort
PEDALS Alloy, 9/16"axles, w/ BS reflectors
HEADSET Threadless, Internal 1-1/8"
Speed & Range & Weight & Supports
MAX SPEED Up To 20 MPH on Throttle / 28 MPH on Pedal Assist
RANGE Up To 70 Miles Per Charge
WEIGHT LIMIT Maximum Load: 350 lbs
NET WEIGHT 65.5 lbs
RACK Alloy Rear Model
FENDERS Alloy, 27.5", Full coverage
KICKSTAND Adjustable Side Kickstand
PACKAGED Above All Accessories Are Included.
