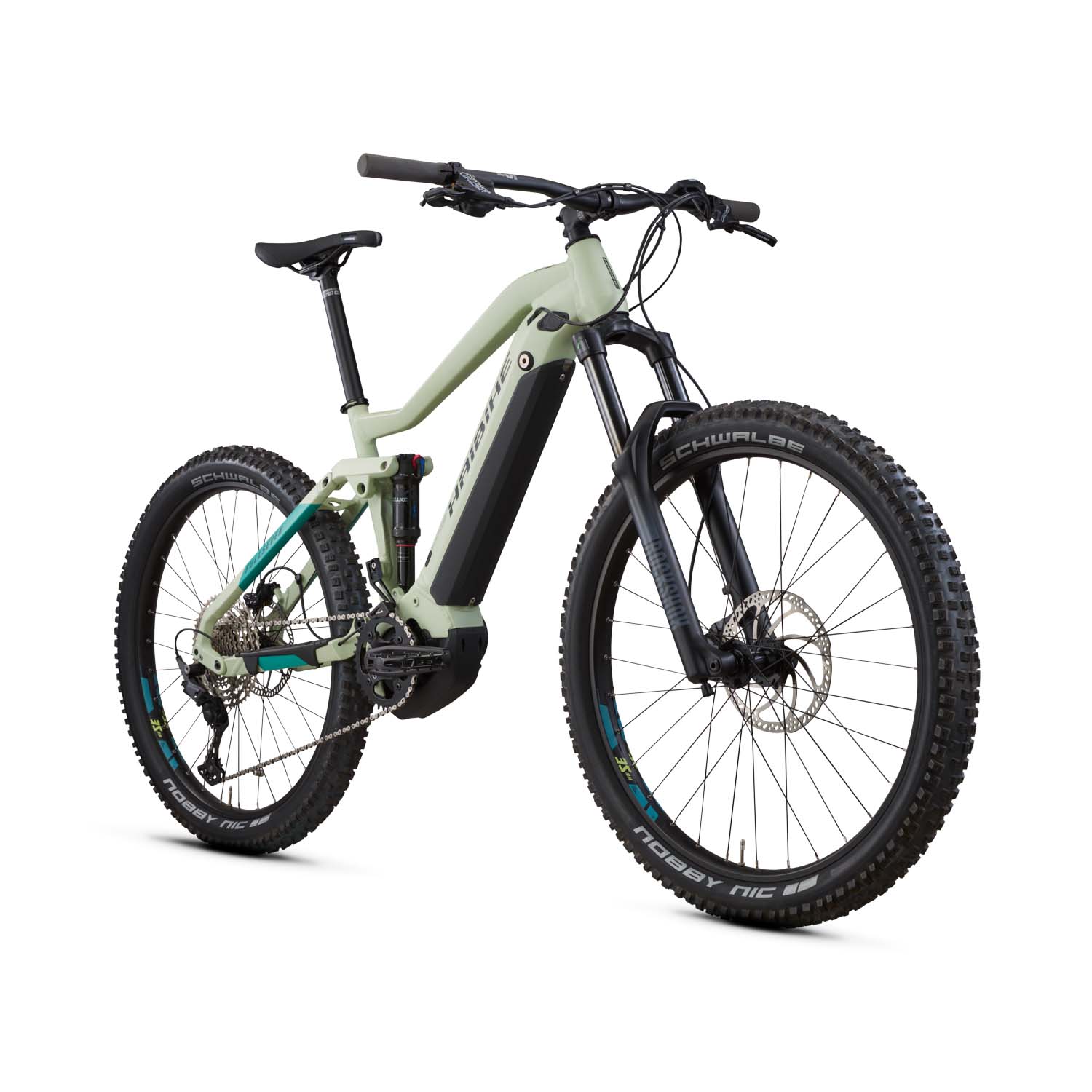

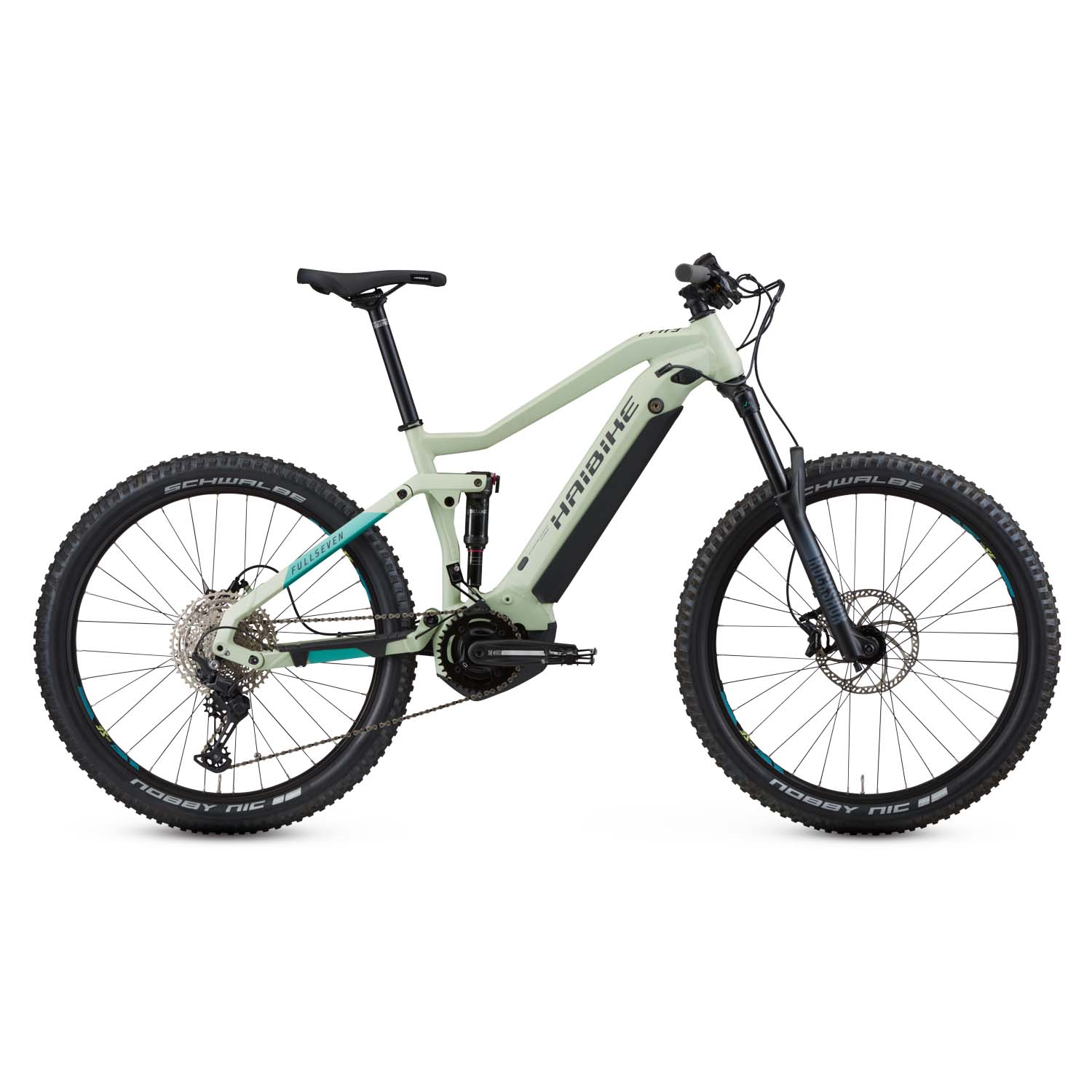

Haibike FullSeven 5 E-Bike MTN/ATB, Artic Frost Cream, Medium + Large
SKU: 210000013073
$3,800.00
Unit price
/
Unavailable
By Haibike
Description
Are you looking for an e-full suspension to tackle steep climbs as well as difficult descents? The Haibike FullSeven 5 is your perfect companion for any terrain: its Yamaha PW-ST motor with integrated 500Wh battery gives reliable and powerful support. 160mm suspension, 4-piston disc brakes and 27.5" wheels with Plus-size tyres ensure you have fun while keeping you safe in any situation.
Key Features
- Frame Material: Aluminum
- Drive Unit: Yamaha PW-ST System, 70Nm, 25km/h
- Battery: Yamaha InTube 500Wh
- Fork: RockShox 35 Silver, Travel: 160mm
SPECS
| Color | Artic Frost Cream |
| Size |
Medium
|
| Year |
2022
|
| Engine |
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
|
| Display |
Yamaha, Side Switch, 1.7" LCD, 7 functions
|
|
Battery
|
InTube, 500 Wh
|
|
Frame Family
|
Haibike, FullSeven LT Yamaha i500, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount, Travel= 150 mm
|
|
Fork
|
RockShox, 35 Silver, Steel spring, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
|
|
Damper
|
RockShox, Deluxe Select Plus, Air, 65.0 mm, Trunnion Mount M8 x 25
|
| Crank Arm |
Haibike Components, The Crank +, Aluminium
|
|
Brake - Front
|
Tektro, Orion M745 , 203 mm, 4-piston disc brake
|
|
Brake - Rear
|
Tektro, Orion M745 , 180 mm, 4-piston disc brake
|
|
Tube
|
Presta valve
|
|
Rim
|
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
|
|
Clamping Ring
|
Internal hexagon, 34.9 mm |
| Rear Derailleur |
Shimano, Deore M5100
|
|
Shift Lever
|
Shimano, Deore M5100, Trigger switch, 11 Speed
|
|
Bottom Bracket
|
Integrated in the motor
|
|
Sprocket
|
Shimano, M5100, 11 - 51 teeth
|
|
Chain
|
KMC, X11e
|
|
Chainring
|
Steel, 38 teeth
|
| Chain Guide | Nylon direct mount |
| Brake Lever | Tektro, Orion M745, Aluminium |
| Brake Disc - Front |
Tektro, TR203 |
| Brake Disc - Rear | Tektro, TR180 |
| Tyre | Schwalbe, Nobby Nic Performance, 65-584, 27.5 inch, 2.6 inch |
| Front Wheel Hub |
Haibike Components, The Hub ++ , 6-bolt standard |
| Spokes |
Sapim, Leader, Black |
| Handlebar |
Haibike Components, TheBar +++ Gravity , 780 mm |
| Grips |
Haibike, MTB grips |
| Stem | Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 ° |
| Headset |
Feimin, A-Head Tapered, Aluminium, Cartridge |
| Saddle | Haibike Components, TheSaddle |
| Seat Post |
Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm |
| Pedals |
Freeridepedal , Aluminium, with Reflector, |
| Total permitted weight |
120.0kg |
| Battery Range | The calculated data comprises estimates and approximations that may vary from the actual result. The precise data will vary, depending on the type of use and the external influences. Furthermore, no liability will be accepted for the correctness of the determined values. |
