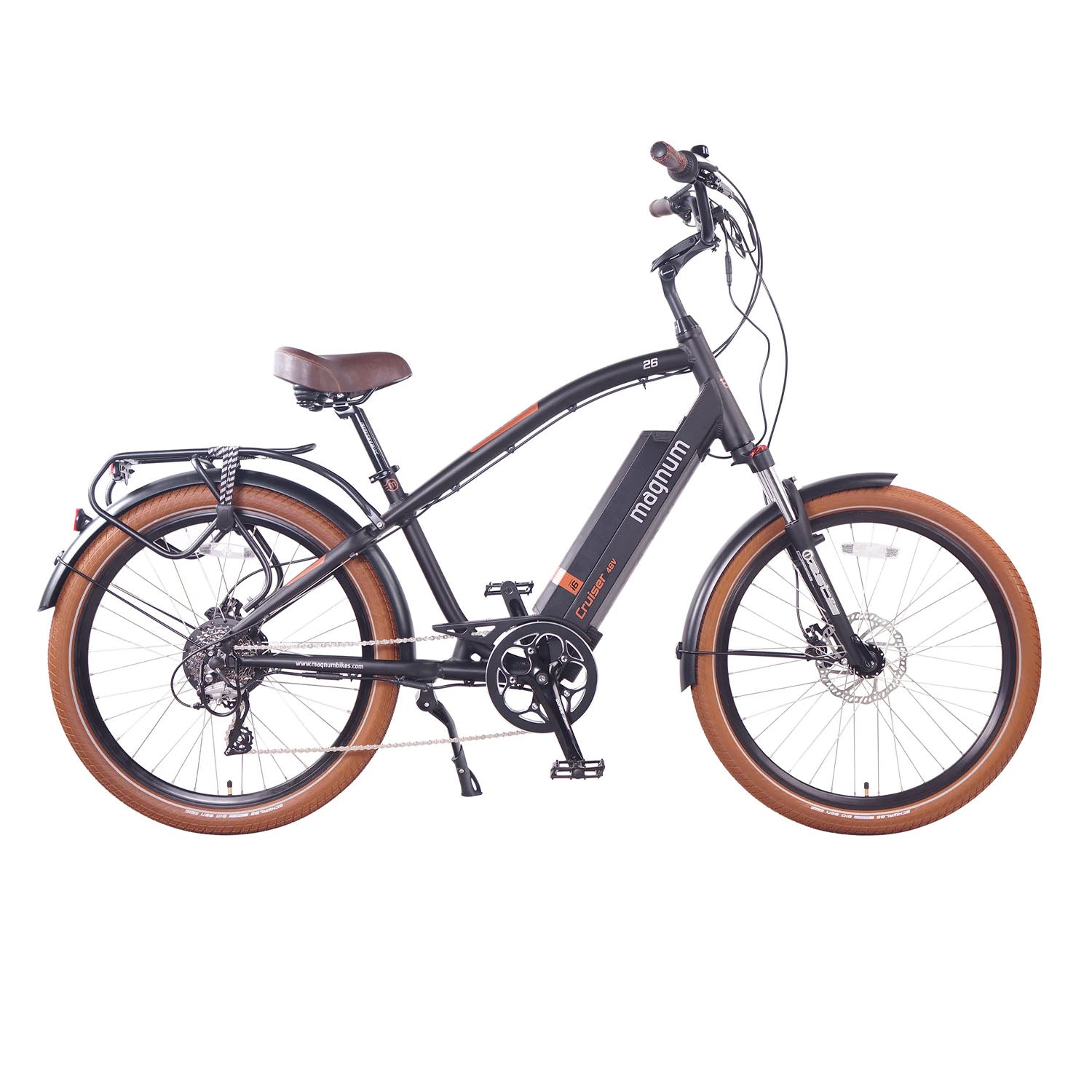

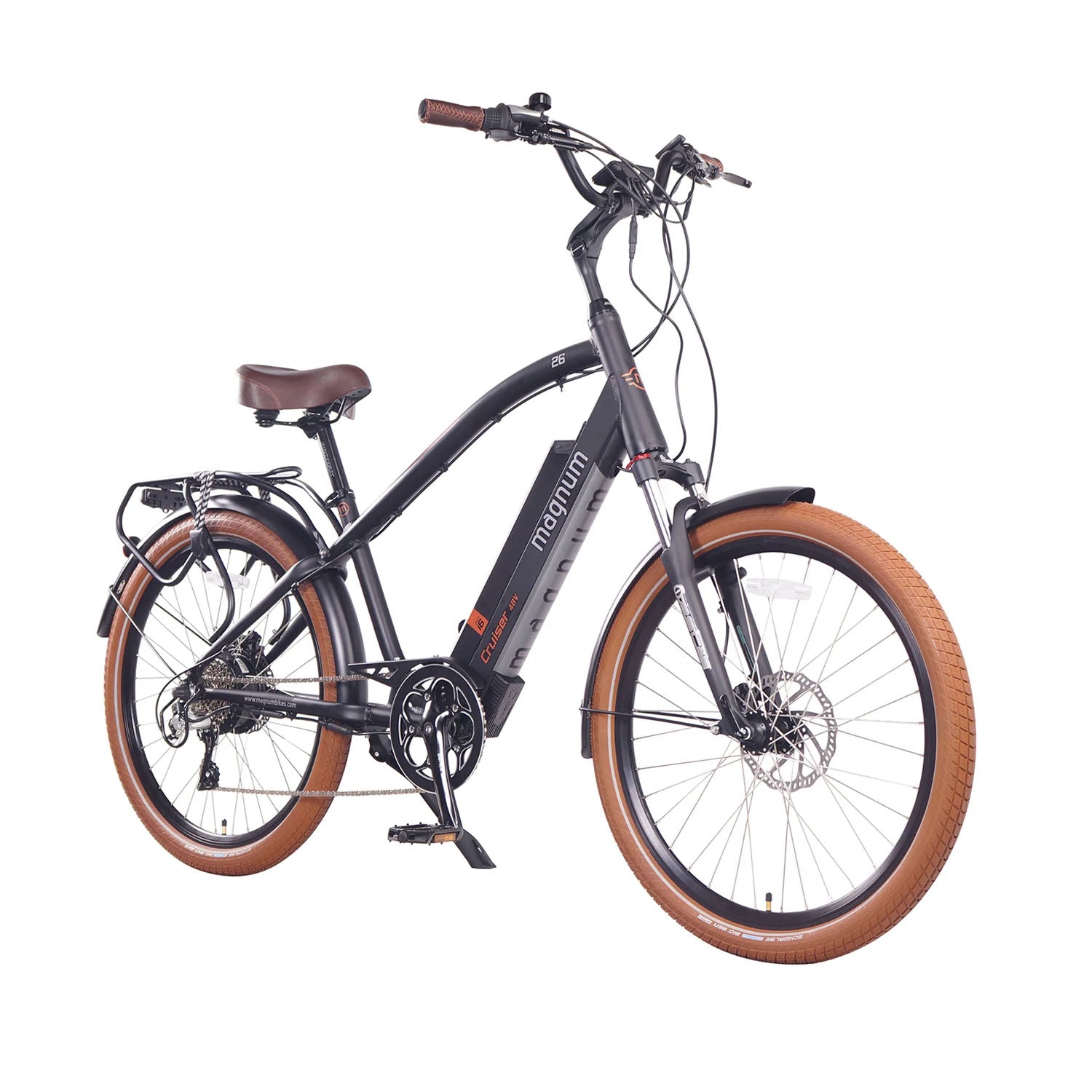

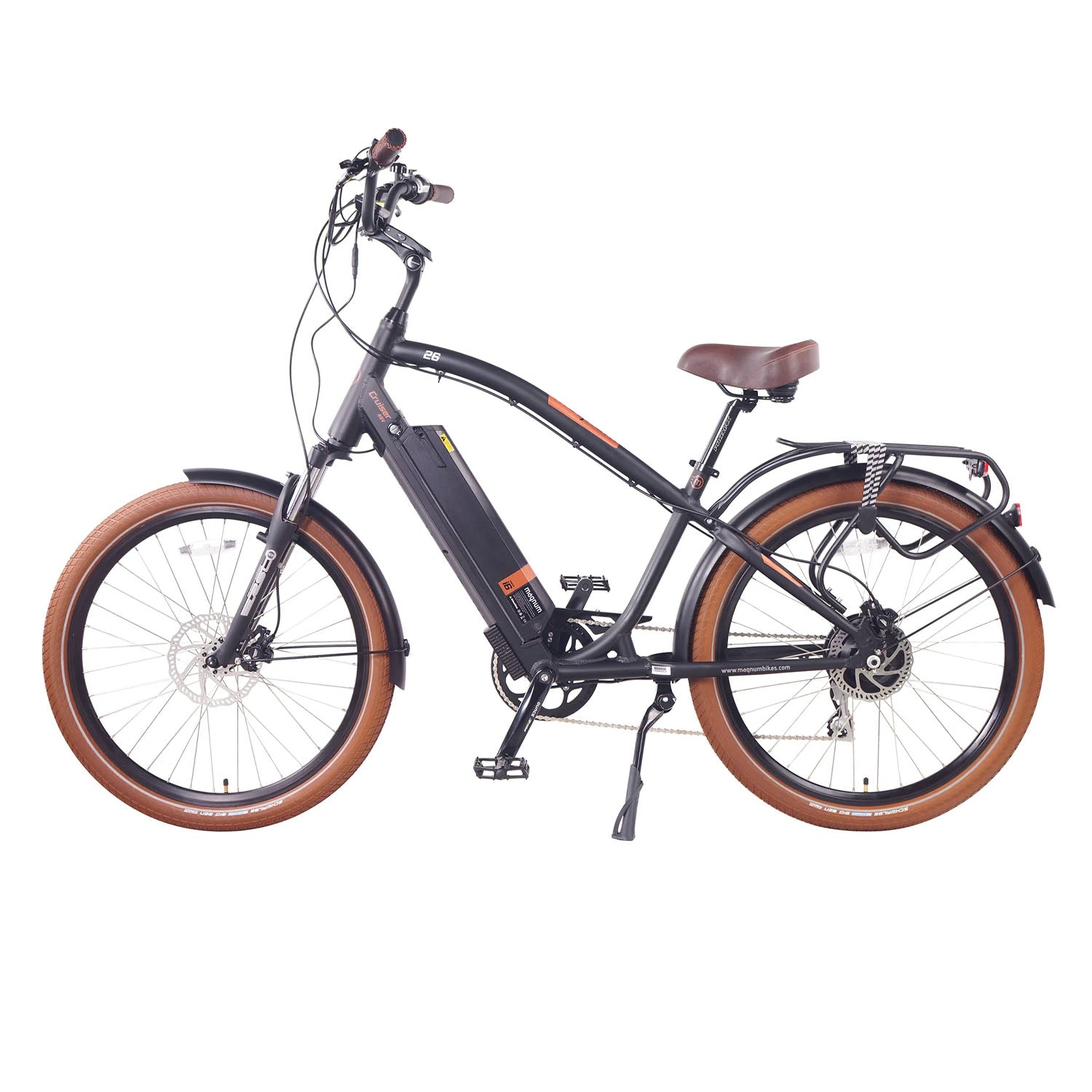

Magnum Cruiser CI6 e-bike Step Over, Black 48V
Couldn't load pickup availability
Description
A beautifully designed beach cruiser-style electric bike well suited to urban riding or commuting. The powerful 500-watt motor, paired with a large 48-volt 13-amp-hour battery pack, offers both pedal-assist and throttle mode.
Highlights:
Category: Cruiser
Class: Can be configured to Class 1, 2, or 3 e-Bike
Frame Style: High-step Cruiser
Seating: Cruise
Perfect for: Pavement, Light Trails, and Beach
Battery: The Cruiser’s large, 48W battery can handle all the demands of a cargo bike, and it will power a range of up to 50 miles, depending on cargo weight, wind, and terrain variables.
13Ah:
- 50 miles (80 Kilometers) Max Range
- 6.5 Hours Charge Time
Cruise with Comfort and Style
Ergonomic Pedal-Forward Position
The ergonomic, pedal-forward cruiser position lets you cruise the roads in comfort and style. Large, plush saddles and wide tires for stability and comfort complete the stylish, carefree Magnum Cruiser experience.
SPECS:
| BRAND MOTOR | Das-Kit |
| MOTOR TYPE | Geared Rear Hub |
| MOTOR NOMINAL OUTPUT | 500 Watts |
| MOTOR PEAK OUTPUT | 750 Watts |
| BATTERY VOLTAGE | 48 Volts |
| BATTERY Ah | 13Ah |
| BATTERY WH | 624Wh |
| BATTERY CHEMISTRY | Li-NMC |
| BATTERY CHARGE | 6.5 hours |
| MINIMUM RANGE | 25 miles |
| MAXIMUM RANGE | 50 miles |
| DISPLAY TYPE | Das-Kit C7, Backlit, Monochrome LCD |
| DISPLAY READOUT | Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage |
| DRIVE MODE | Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode |
| TOP SPEED | 25 mph with Pedal Assist, 20 mph with Throttle |
| LIGHTS | Independent Front Headlight, Independent Rear Light |
| FRAME MATERIAL | Aluminum Alloy |
| FORK DETAILS | Adjustable Spring Suspension With Lockout |
| GEARING DETAILS | Shimano 8-Speed |
| SHIFTER DETAILS | Shimano 8-Speed |
| CRANK | Aluminum Alloy, 52T, 170mm |
| PEDALS | Wellgo |
| STEM | Tool-free Adjustable |
| BRAKES | Tektro Hydraulic Disc Brakes |
| GRIPS | Ergonomic Faux Leather |
| SADDLE | Selle Royal, Brown |
| TIRE BRAND | Schwalbe Big Ben, Reflective Sidewall Stripe, 26 x 2.15 |
| WHEEL SIZE | 26" |
| FENDERS | Front and Rear Included |
| CHAIN | KMC |
| MEASUREMENTS | |
| SEAT TUBE | 19.25” (49.5 cm) |
| REACH | 11” (28 cm) |
| STAND OVER HEIGHT | 33” (84 cm) |
| VIRTUAL TOP TUBE LENGTH | 27.25” (69 cm) |
| MIN SADDLE HEIGHT | 25.25” (64 cm) |
| MAX SADDLE HEIGHT | 30” (76.5 cm) |
| WIDTH | 26” (66 cm) |
| WHEELBASE | 49.25” (125 cm) |
| LENGTH | 71” (195 cm) |
| TOTAL WEIGHT | 63 lbs (25.5 kg) |
| BATTERY WEIGHT | 9 lbs (4.1 kg) |
| RIDER HEIGHT MIN. | 5'5" |
| MAX LOAD CAPACITY | 300 lbs. |
