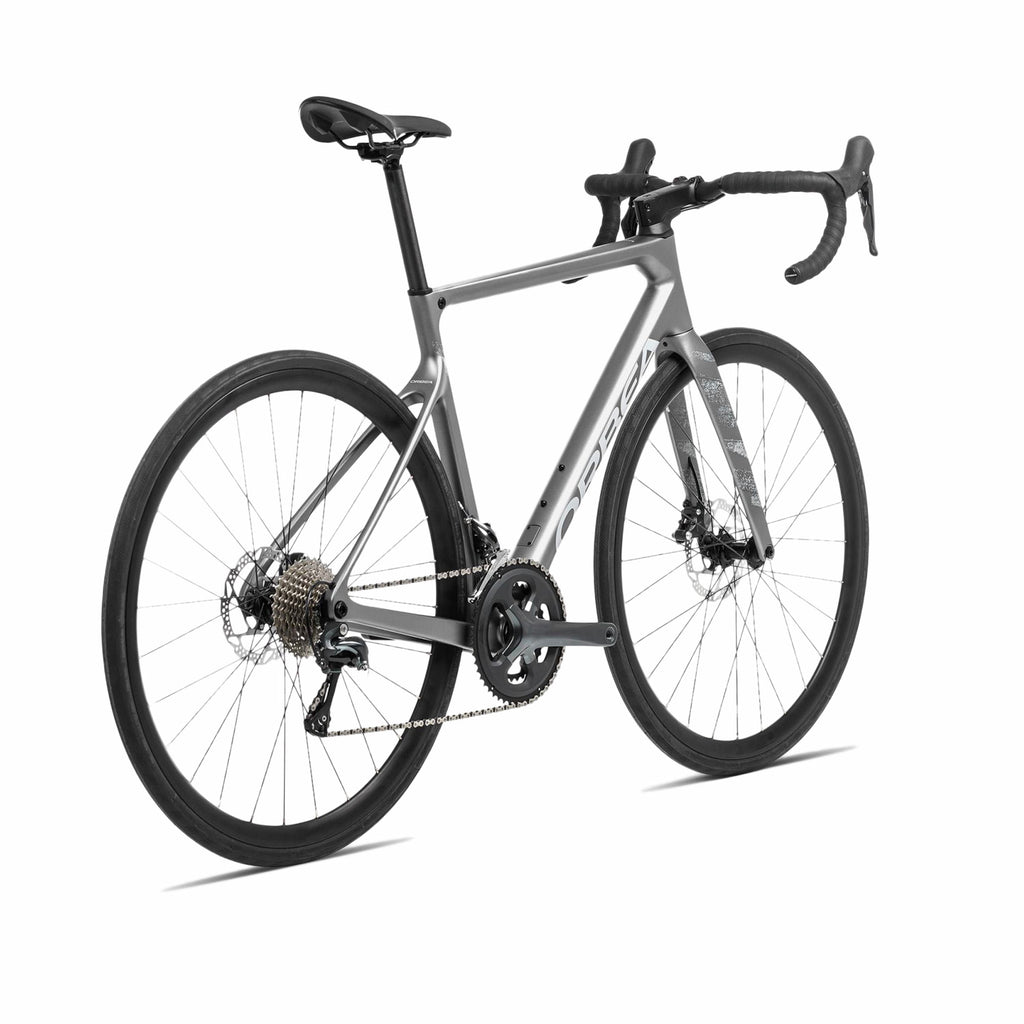

Orbea ORCA M30i 2023
Couldn't load pickup availability
The Orbea Orca M30i is a Lightweight, comfortable, and affordable Full-Carbon Road bike w/Shimano's newest Di2 electronic groupset - R7100 2x12
Competitive rider or not, we all love the feel of a racing bike – an Orca that is light, fast, and beautiful.
THE LIGHTEST AND MOST CAPABLE RACING BIKE
Performance, technology, and style have always been cornerstones of cycling. You may not be a competitive rider, but you love the feel of a racing bike – Orbea created a light, fast, and beautiful Orca. Professional athletes, weekend warriors, Strava hunters, and recreational riders all have similar aspirations and love the machine as much as the lifestyle.
ORBEA MONOCOQUE CARBON
Orbea uses the most technologically advanced carbon construction available to make the most sophisticated frame possible – A complex and painstaking process with results you will appreciate in the saddle.
ORBEA ROAD RACING GEOMETRY
Orca Racing Geometry is born from almost 100 years of designing road racing bikes and is the perfect balance of responsiveness and stability. The position is aggressive to maximize body aerodynamics and efficiency. Handling is precise and intuitive. Angles and dimensions are considered carefully across various sizes to put more power to the road with every pedal stroke, and more power means more speed.
How can ergonomics help you ride further? Unlike a racing position focused on aerodynamics, an endurance position results in a bike that is easier to ride and increases stamina. A shorter cockpit and higher handlebar maximize rider comfort – more comfort means longer and faster rides.
OMR FRAME SHAPES
The OMR frame targets rounded shapes that improve compliance and reduce weight, making the OMR ideal for riders seeking a smooth and efficient ride quality. In addition, the layup and dynamic structure gives compliance and vibration absorption 5% better than the previous OMR and 10% higher than the current OMX.
The round 27.2mm seat post is significantly more comfortable than 30.9 or 31.6mm diameters, improving smoothness in the saddle without sacrificing frame stiffness at the bottom bracket.
OMR frames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios. In addition, bladder molding with EPS forms and PU headtube and bottom bracket inserts stop wrinkling and unconformities in critical zones, allowing less carbon to be used while maintaining strength.
95-105NM STIFFNESS, The large majority of torsional and lateral loads are handled by the lower spine of the frame. The headtube, downtube, and chainstays resist twisting and transmit power to the rear wheel. There is no doubt about it; resistance to flex in the bottom of the frame translates directly to more watts to the wheel and a sensation that power transfer is instantaneous.
Lowered seat stays and optimized carbon structure and tubing shapes are elemental to building a comfortable frame that helps reduce muscle fatigue, and comfort makes you faster. In addition, the natural flex patterns created by the carbon layup and minimal bulk of the top tube and seat stays deliver a dynamic, smooth ride that feels like floating over rough roads.
The round 27.2mm seat post is significantly more comfortable than 30.9 or 31.6mm diameters, improving smoothness in the saddle without sacrificing frame stiffness elsewhere.
OC RISE HANDLEBAR
This simple and elegant ergonomic solution elevates the tops and drops of the traditional road bar, so your neck and shoulders can relax more, focusing on a better ride ahead. Increase endurance with a position that enhances comfort.
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle. It is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment. The entire Orbea road line offers this clean solution with OC Integrated stems and cable covers.
STEM AND COMPUTER MOUNT
The OC2 and OC1 stems of the new Orca are light and stiff thanks to the oversized construction. A cable channel underneath guides the stem into the headset spacers; the OC2 stem adds a size-specific cable cover.
The faceplate of the stem is compatible with an integrated computer mounting platform. Attach a computer or remove the mount for the ultimate clean appearance.
Orca’s seat post clamp is integrated smoothly into the frame, decreasing the likelihood of contamination and increasing aerodynamics. But, of course, it looks great too. Just one of the small details that make Orca smart and beautiful.
TIRE CLEARANCE – 32C
Modern road riders have discovered the advantages of bigger tires – A wider tire inflated to lower pressures can reduce rolling resistance, and the added air volume dramatically increases comfort and traction, just like suspension.
Orbea Orca carbon OMR Disc, monocoque construction, HS 1,5", BB 386mm, power meter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing, EC/DC compatible
Orbea carbon fork 2021, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Shimano 105 R7000 34x50t
Acros Alloy 1-1/2" Internal Cable Routing
OC Road Perfornace RP31-R, Rise 15, Reach 70, Drop 125
OC Road Performance RP21, -6º
Shimano Di2 R7170
Shimano R7170 Hydraulic Disc
Shimano 105 R7100 11-34t 12-Speed
Shimano 105 Di2 R7150
Shimano 105 Di2 R7150
Alloy, Tubeless, 700c, 19c, 28H
Vittoria Zafiro V Rigid bead 700x28c
Carbon, 27.2mm, Setback 20
Fizik Aliante R5
|FRONT WHEEL AXEL
Orbea Thru Axle 12x100mm M12x2 P1 Solid
|REAR WHEEL AXEL
|Orbea Thru Axle 12x142mm M12x2 P1 Solid
