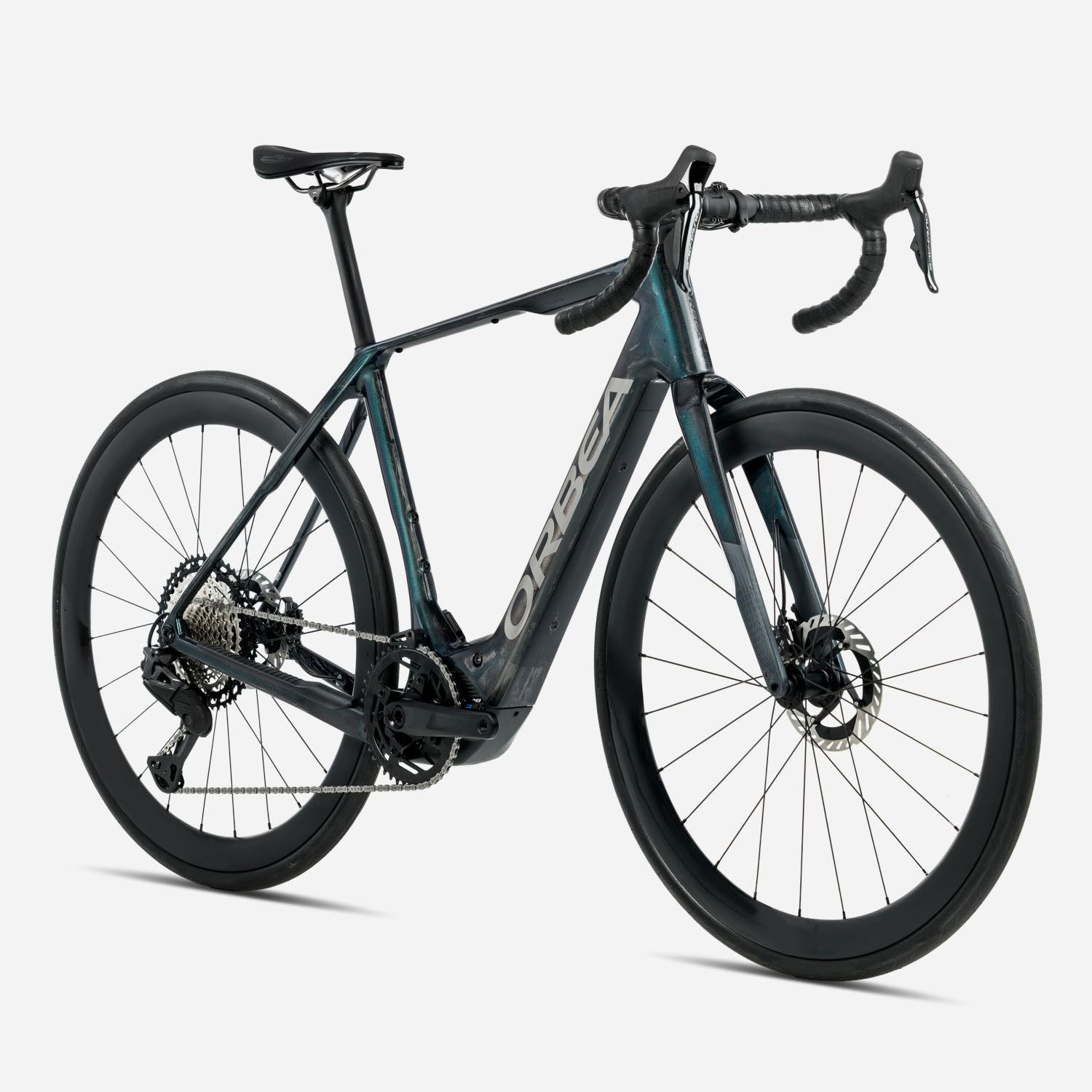

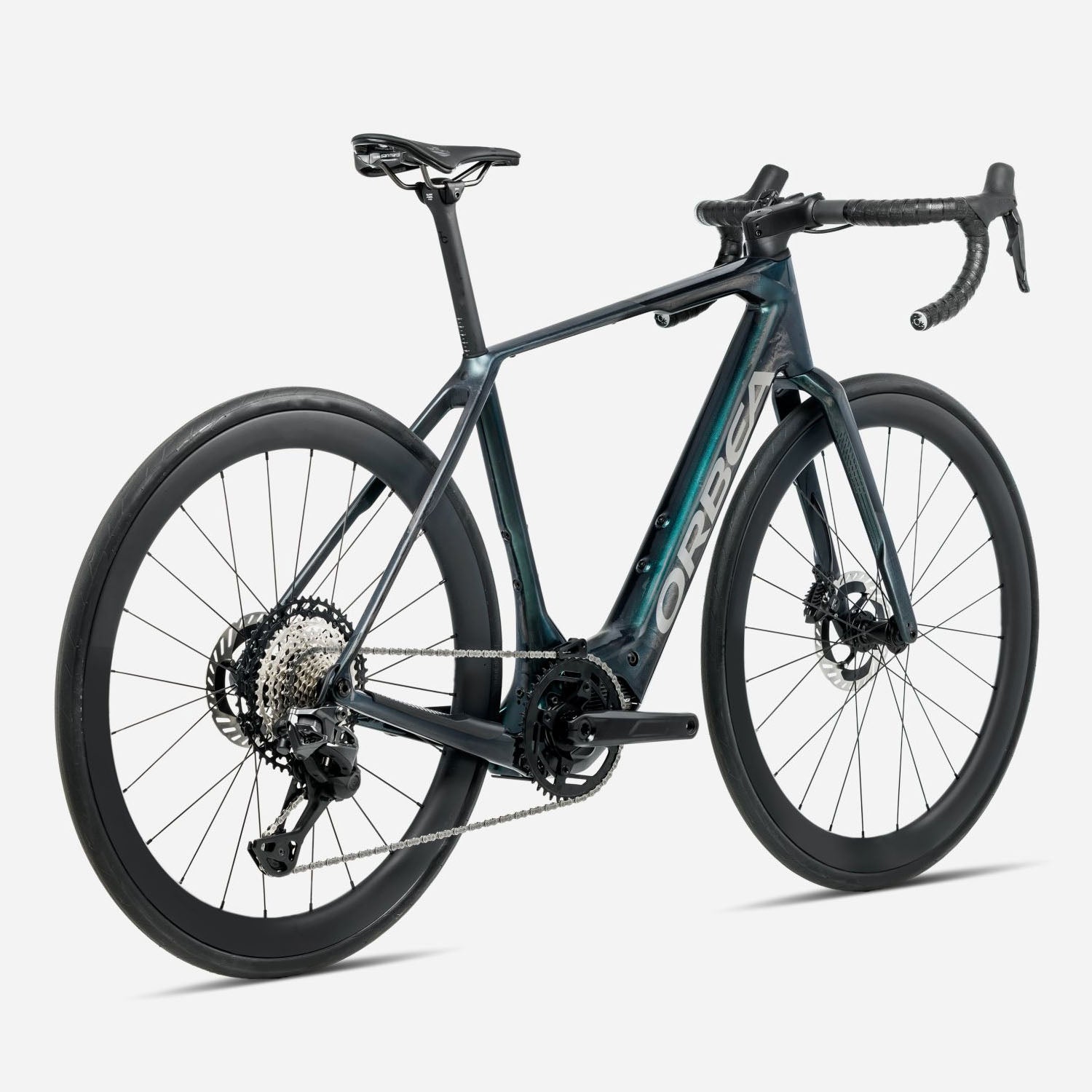

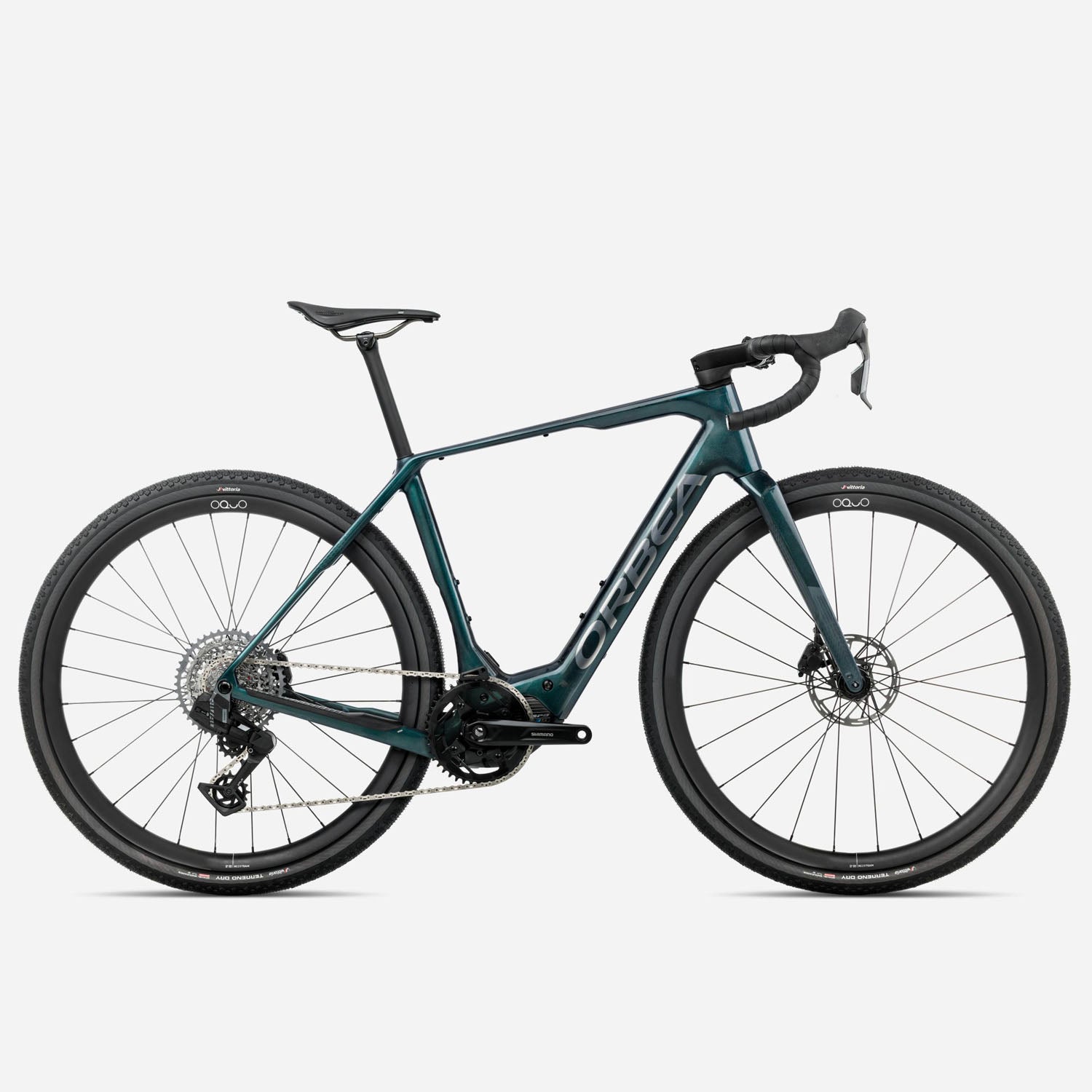

Orbea Denna M31E, eBike, SRAM Rival, Green, Large
Couldn't load pickup availability
Description
DENNA M31E 28 MPH
Denna is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.
JOYFUL ADVENTURE
The best adventures never end; there's always something exciting just around the corner or over the next hill.
RC TUNE: FULL TORQUE AND BALANCED POWER
Rider Synergy (RS Gen2) is central to Dennas' go-anywhere capabilities. Weight, power, and simplicity, plus a best-in-class battery range, means you can rewrite your idea of what is possible.

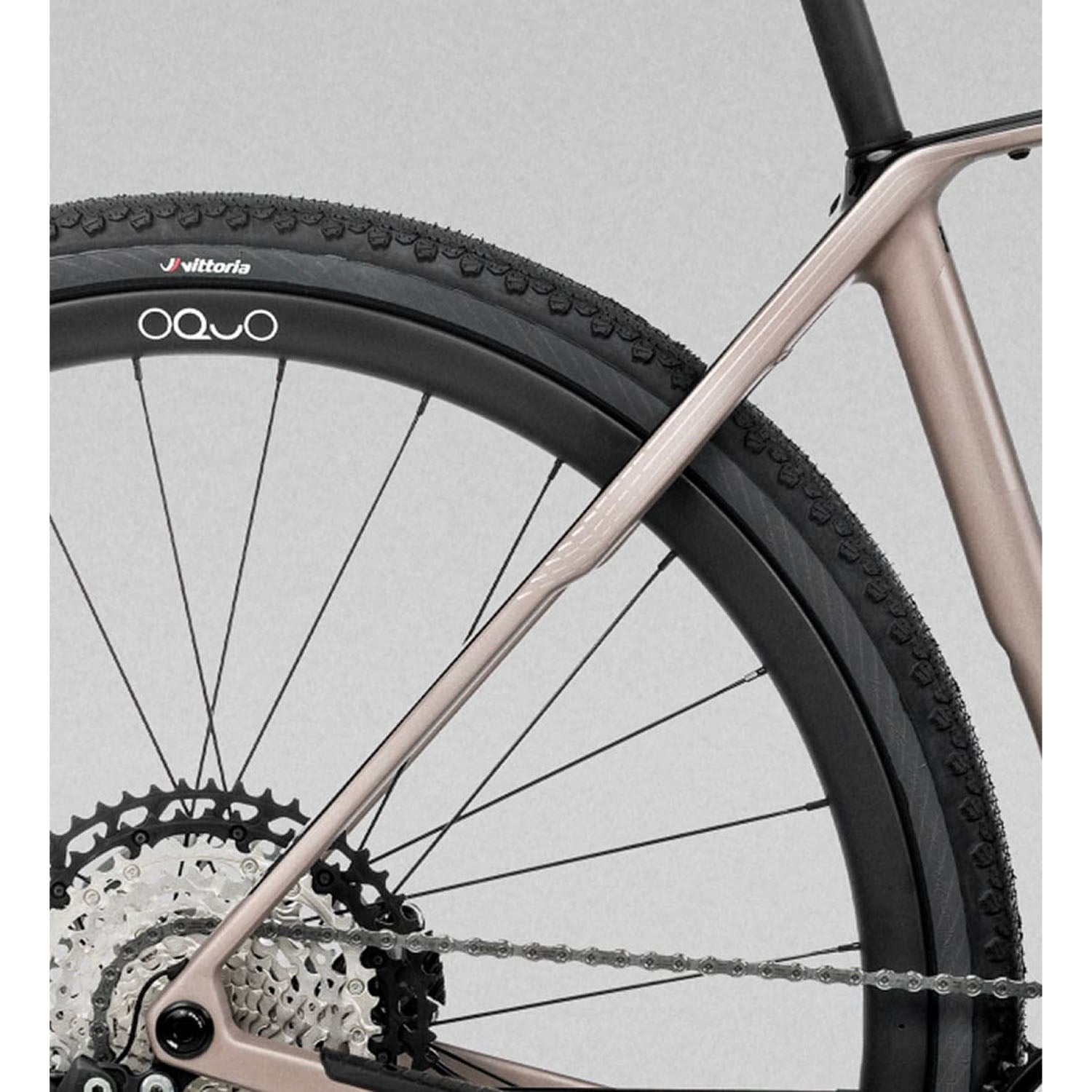

50C TIRE CLEARANCE
Denna has clearance for up to 50C tires, allowing you to fit many mountain bike tires for maximum grip and comfort.

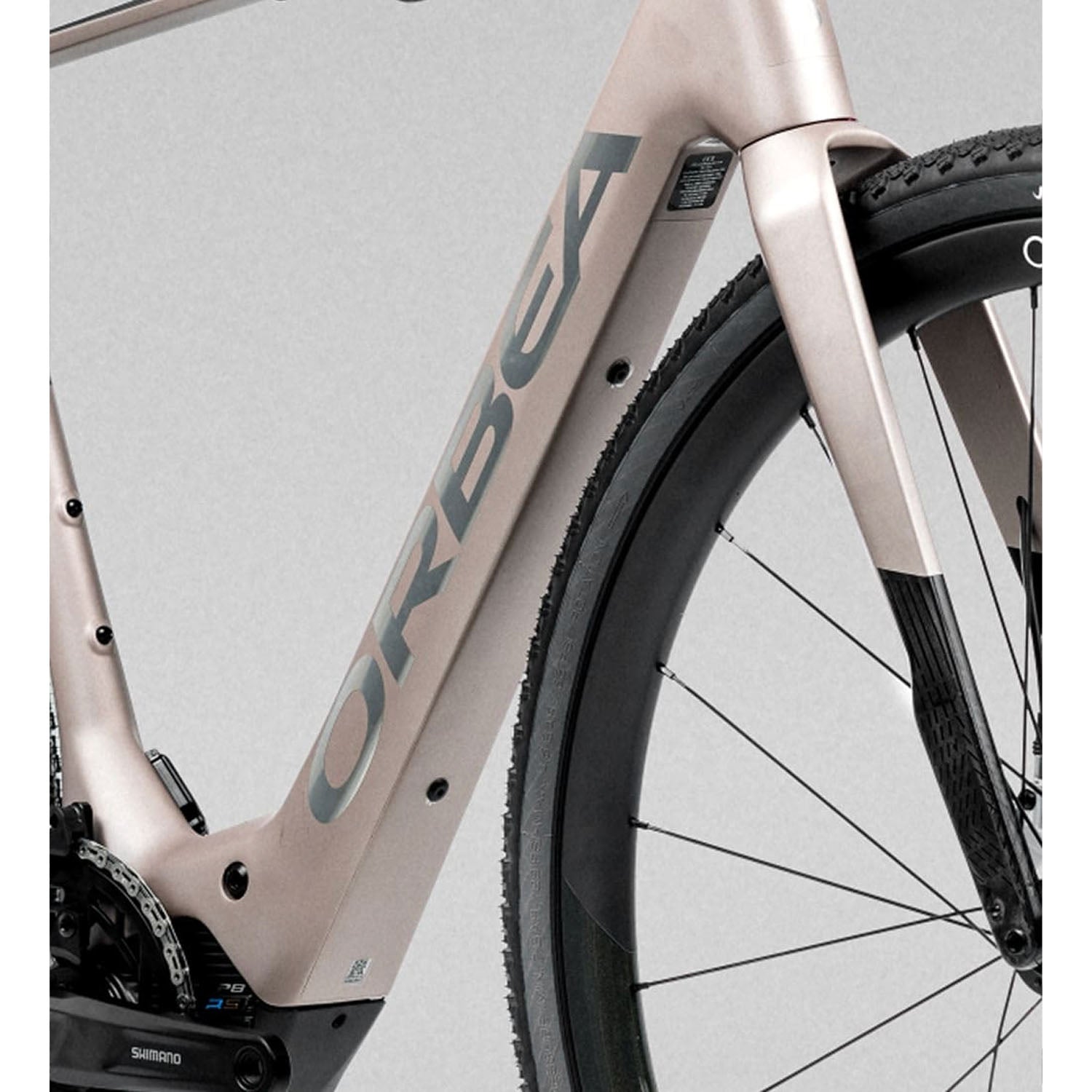

420 WH BATTERY
Orbea's 420Wh battery offers more power in a lighter, smaller package. Thanks to the energy savings of the RS Gen2 firmware, the average rider can expect up to 3500m of climbing from this battery.
FRAME ABSORPTION POINTS
Specifically shaping the frame at key points allows controlled vertical flex to absorb bumps and chatter coming from the rougher paths. The tube shapes here resist lateral flex, meaning Orbea does not compromise Deanna's pedalling efficiency or handling.
SPECS
| FRAME |
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |

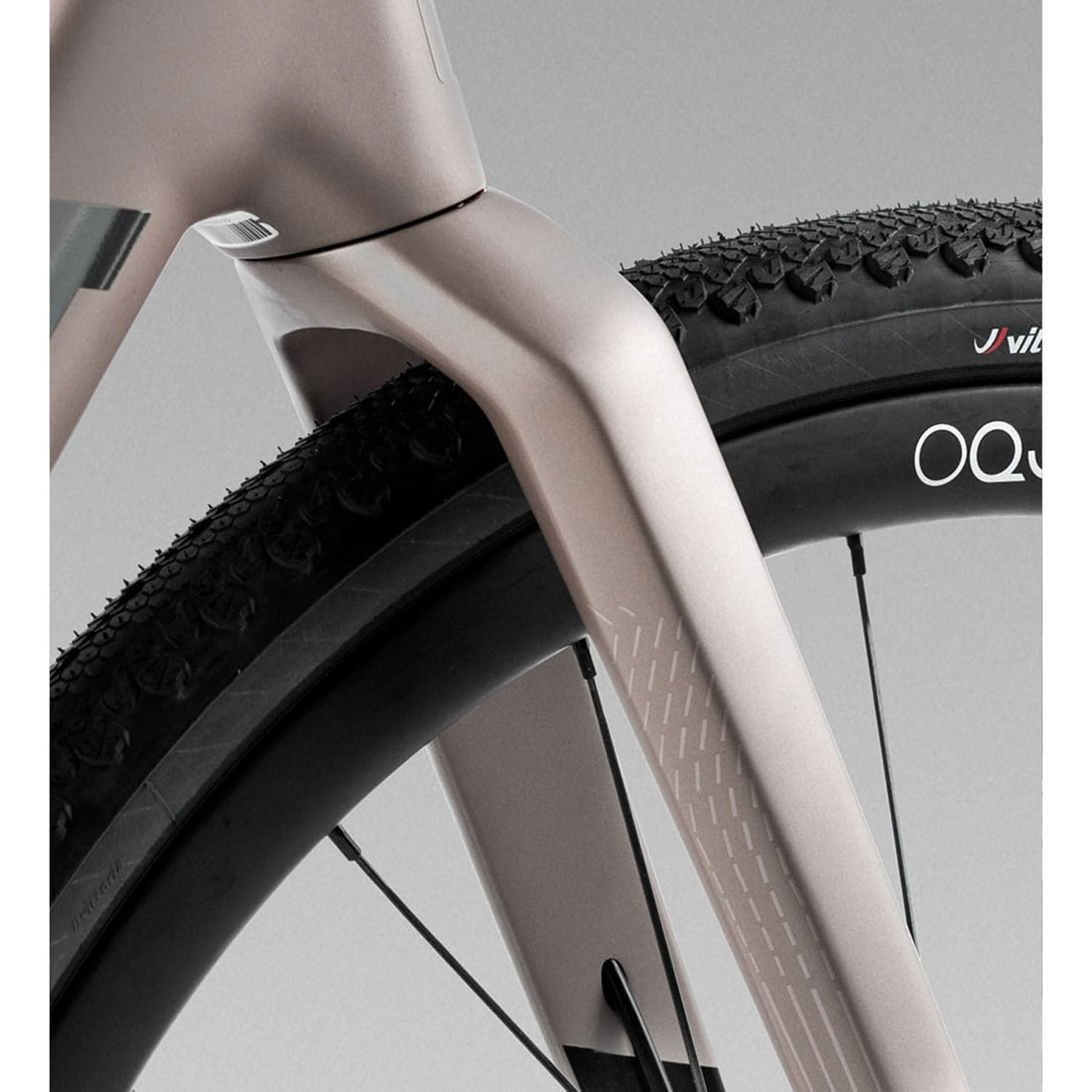

| FORK |
Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| STEERER TUBE |
FSA 1-1/2" Integrated Aluminium Cup |
| BATTERY | Orbea Internal 420Wh |
| RANGE EXTENDER | N/A |

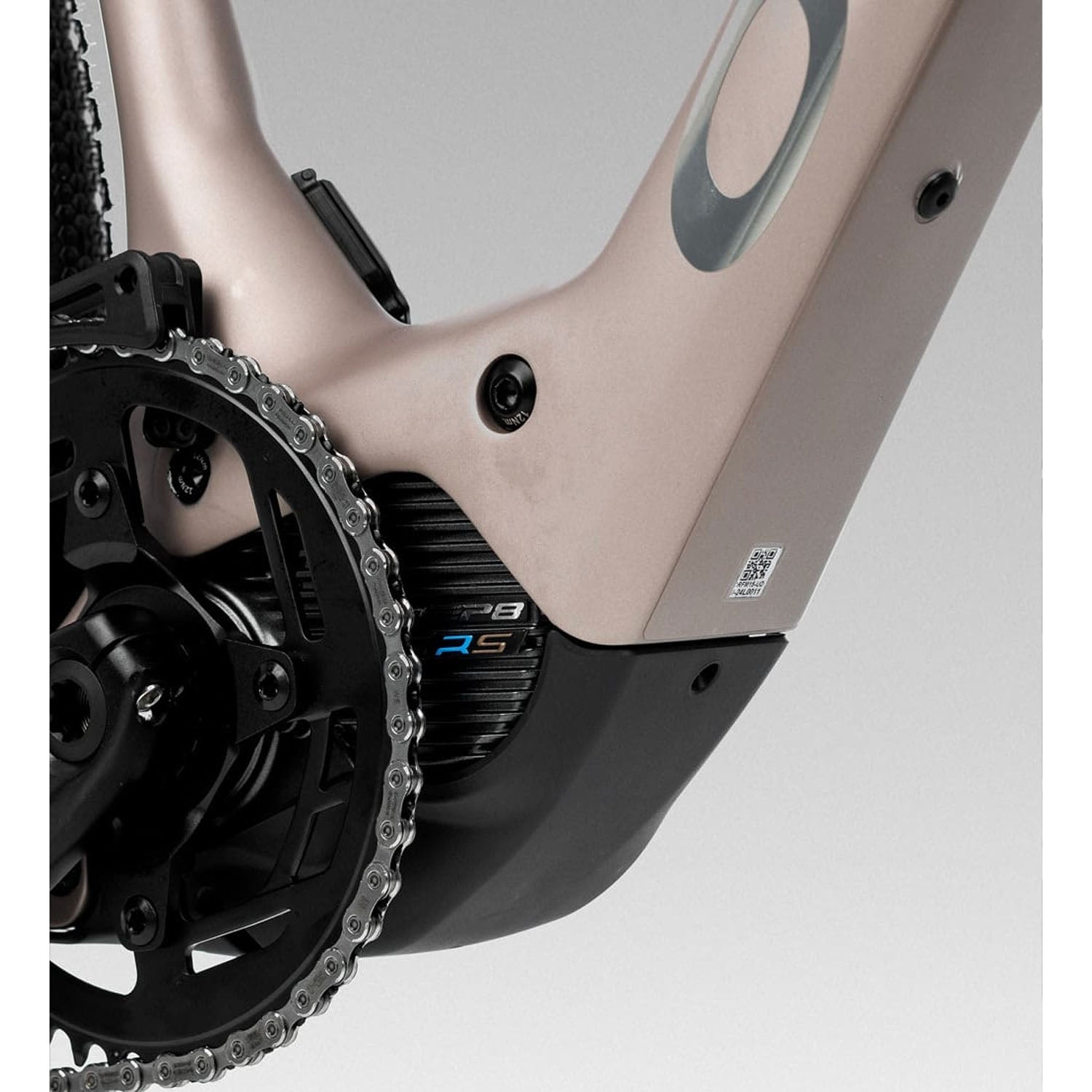

| MOTOR | Shimano EP801 |
| CHARGER | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| REMOTE | EN600-L |
| CHAINRING | Alloy EP8 42t |
| CHAIN | Sram Rival 12-Speed |
| CRANK | Shimano Steps EM600 |
| CASSETTE | Sram XG-1251 XPLR 10-44t 12-Speed |
| BRAKES | Sram XG-1351 XPLR 10-46t 13-Speed |
| REAR DERAILLEUR | Sram Rival XPLR eTAP AXS |
| CHAIN | Sram Rival 12-Speed |
| CHAINGUIDE | Orbea eBike chainguide |
| HANDLEBAR | Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| STEM | OC Road Performance RP10, -8º |
| BRAKES | Sram Rival eTap AXS |
| TIRES | Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| FRONT WHEEL AXLE | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| REAR WHEEL AXLE | Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded |
| SEATPOST |
OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| SADDLE |
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite |
| HANDLEBAR TAPE |
Orbea Anti-Slippery/Shock Proof |
