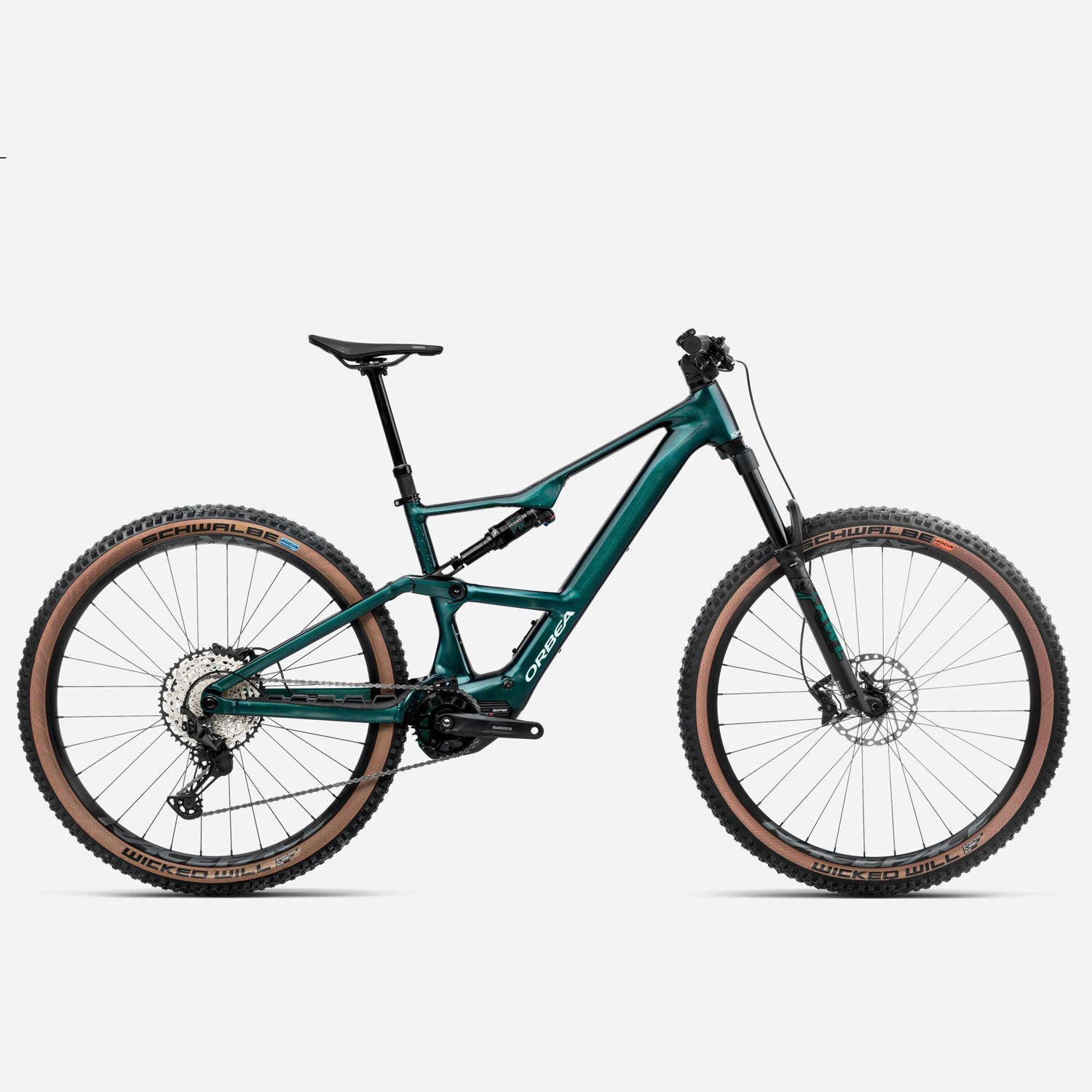

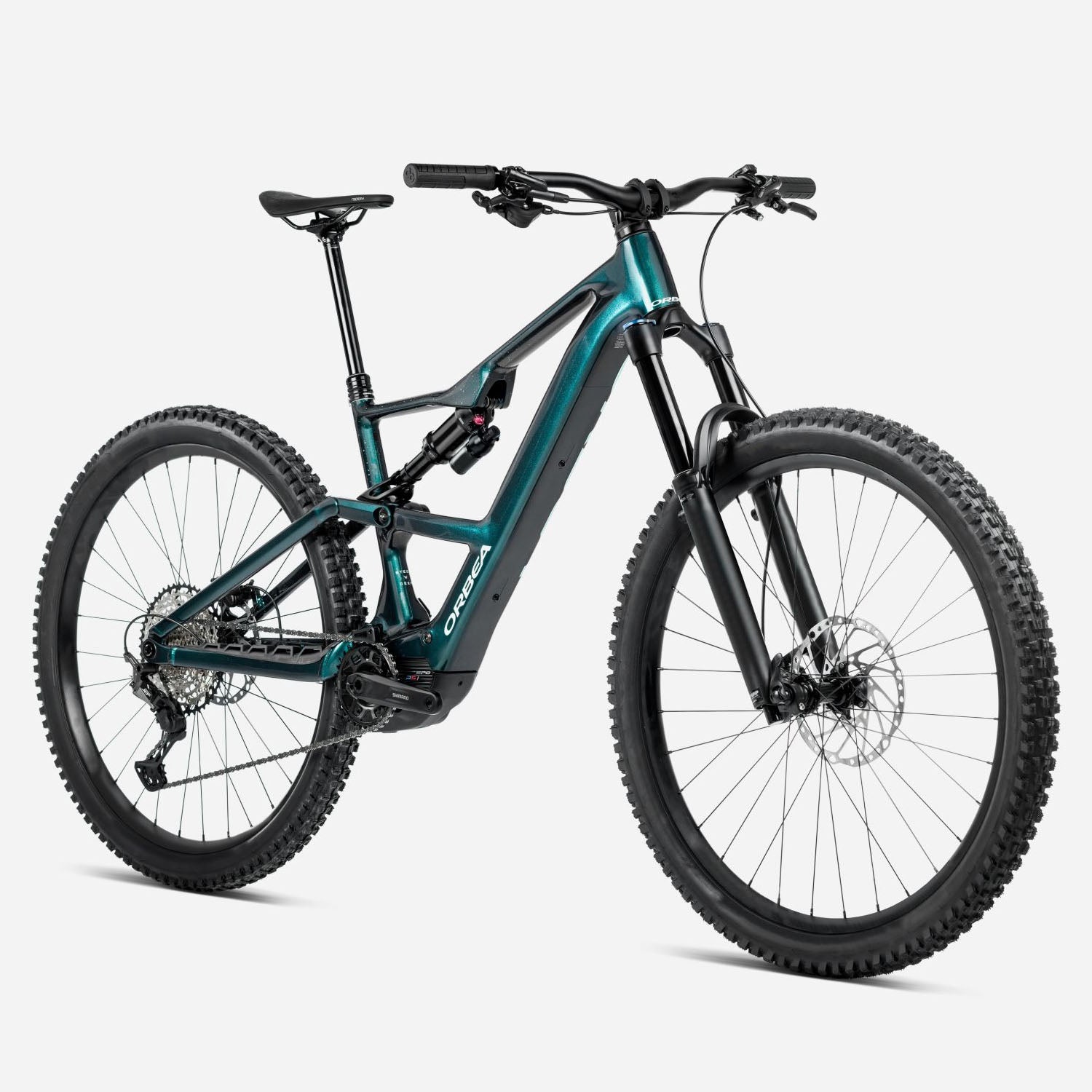

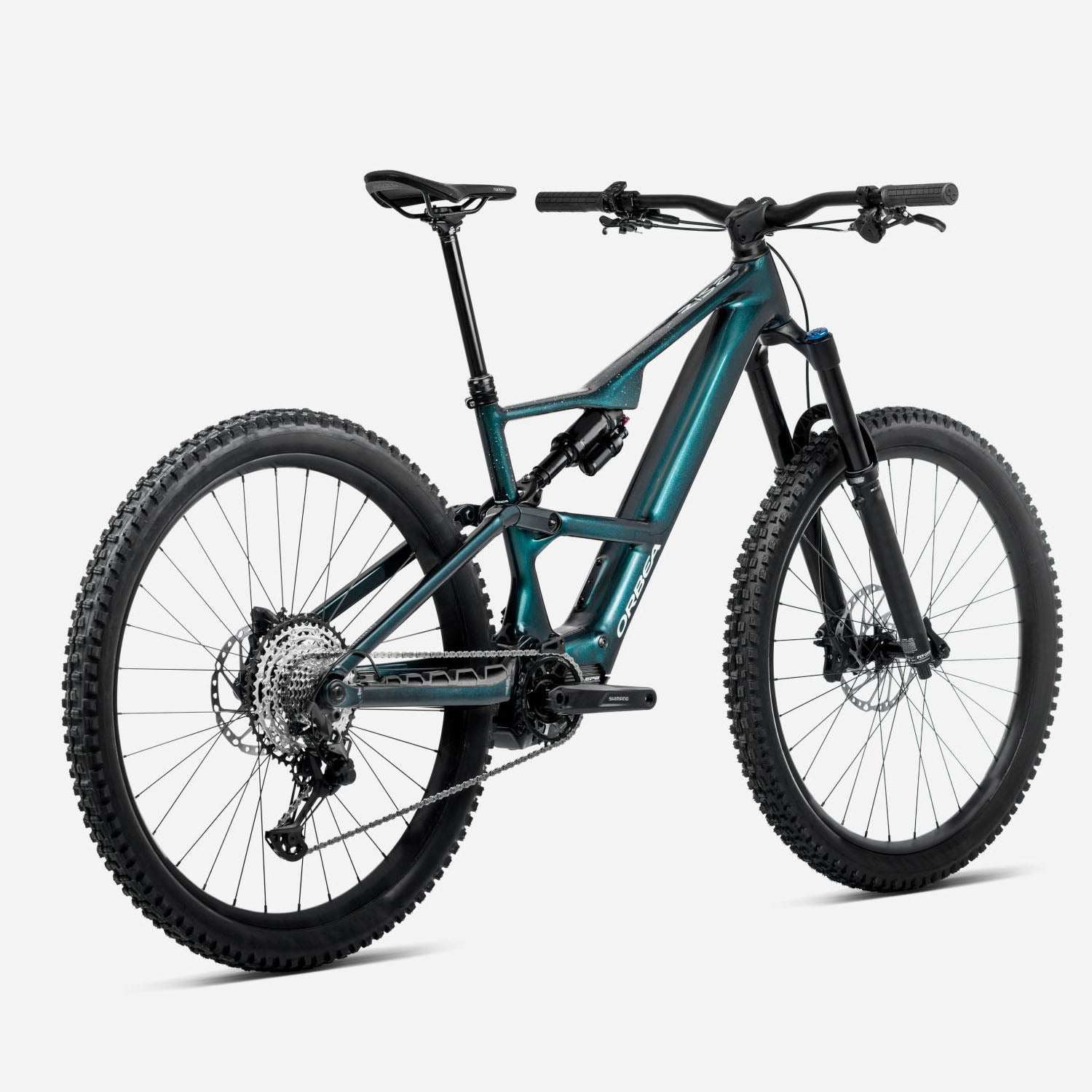

Orbea Rise SL H20 20mph 2026, Green, Medium

SKU: 210000022469
$5,899.99
By Orbea
Description

Find flow in every adventure. Rise SL offers 140mm of efficient suspension and a fast trail geometry, giving a nimble, fun ride. Our 630Wh battery comes as standard, or our 420Wh battery is an option. The Shimano EP motor has our latest RS GEN2 MC firmware, giving the most natural ride.

THE BEST JUST GOT BETTER

Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.

Better handling, more power, and increased stamina. Our updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.

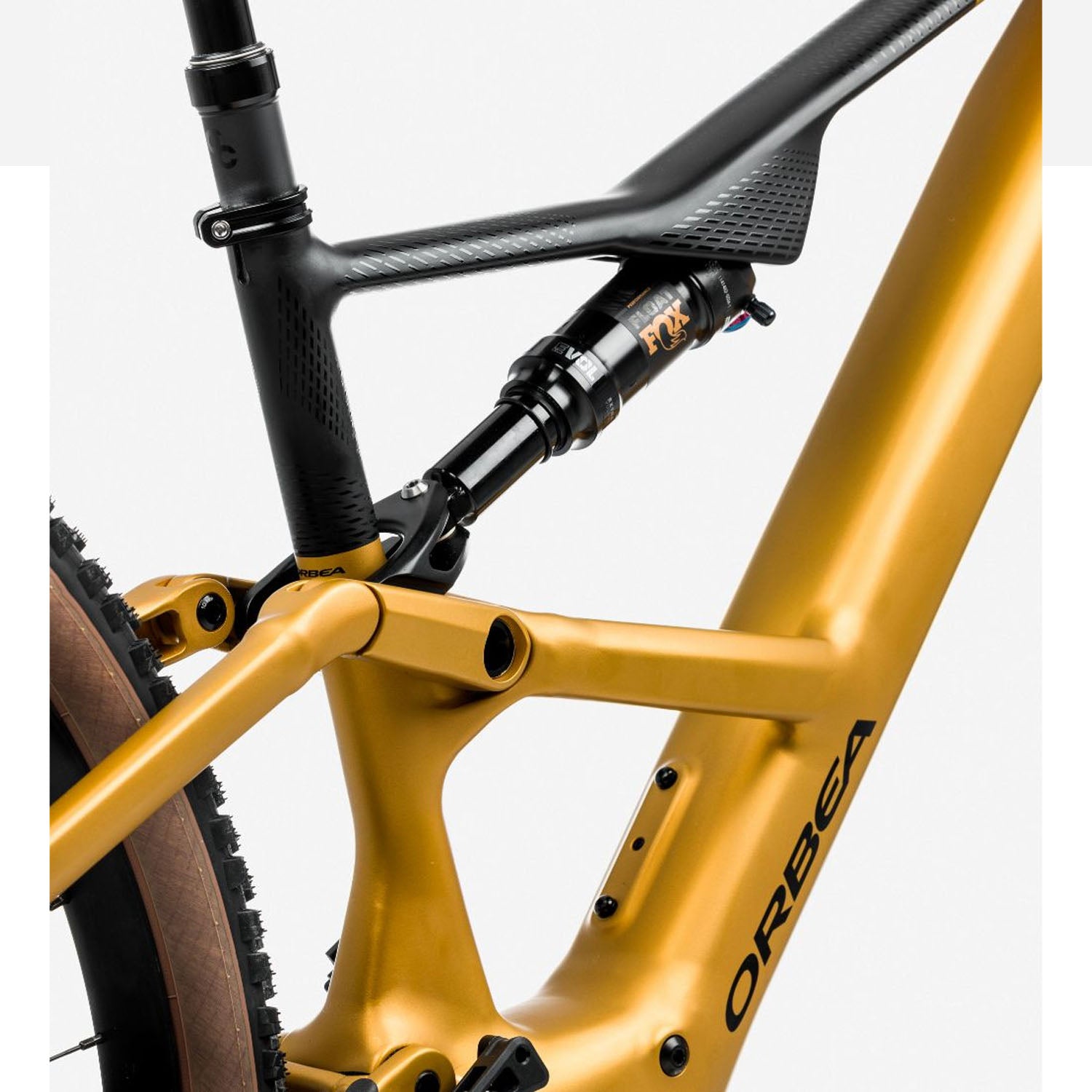

HIGHLY POLISHED ALLOY

Each weld on the main frame is polished smooth, matching the aesthetics of a monocoque, but also significantly, the action of polishing the welds increases fatigue resistance at these high-stress points.

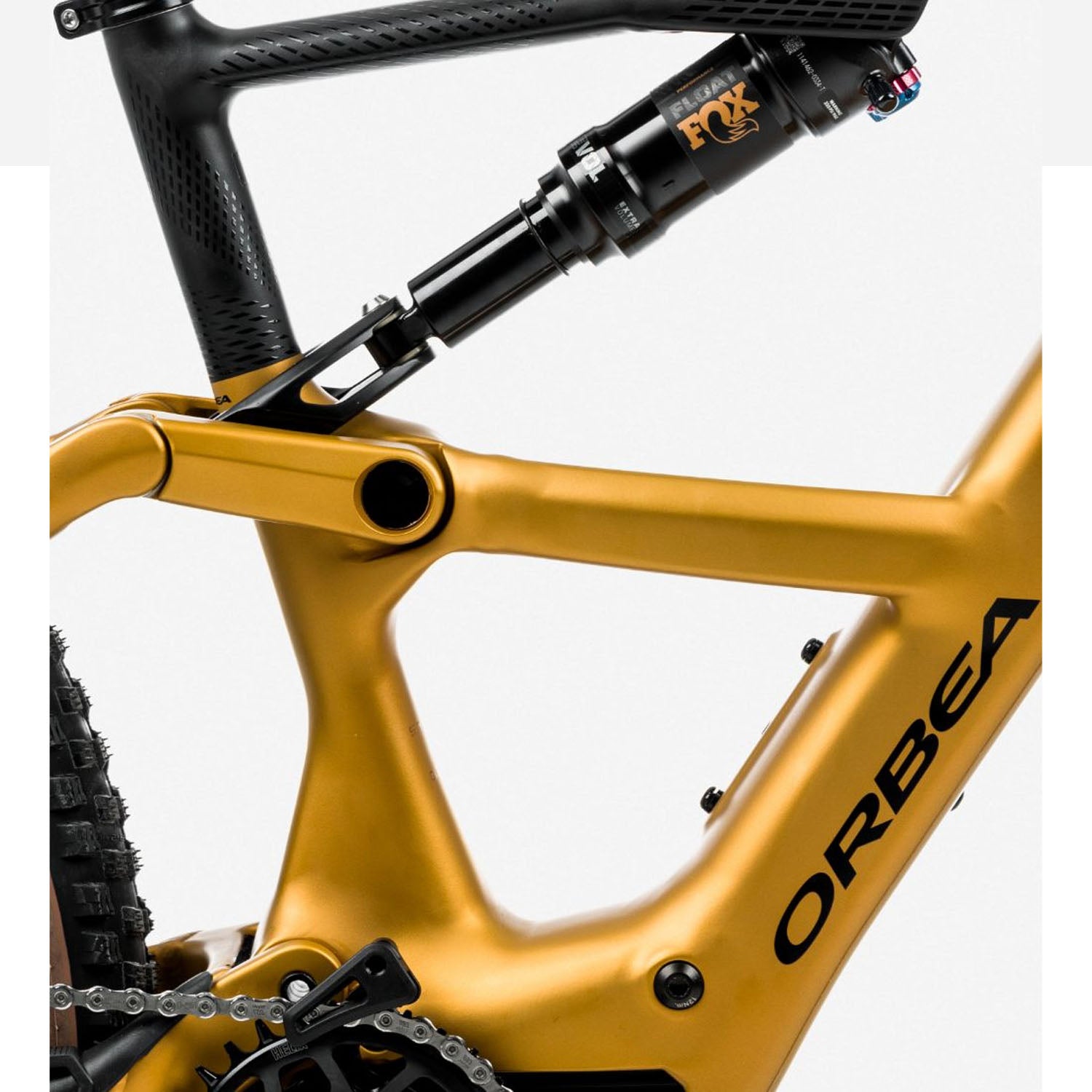

TUNED RIGIDITY// HIGH PERFORMANCE HANDLING

For optimal handling, bikes require the correct rigidity in the right places. Rise's new asymetric frame design is key to tuning the frame rigitiy. The result is predictable performance when you are pushing the limits.

THE NEW RIDER SYNERGY

Rider Synergy (RS) is the heart of Rise. The most natural, elastic assistance and best-in-class battery range for the most epic adventures. Now Rise takes that even further with the option to increase torque to 85Nm.

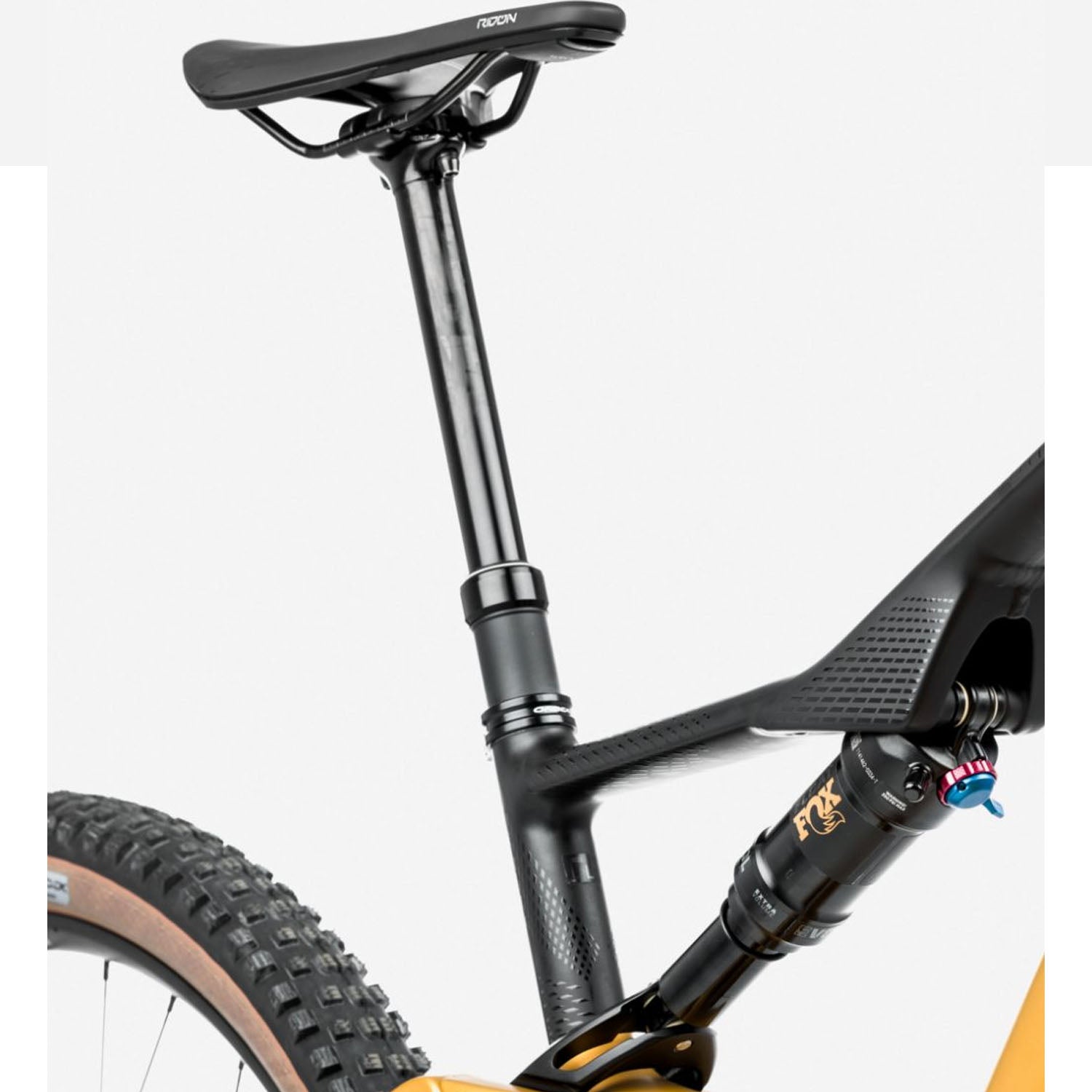

STEEP 'N' DEEP

Drop the saddle right out of the way to give more space to move your body, and even better, Rise, you can fit up to a 230mm dropper. Long-travel dropopers are the only way!

FURTHER AND FASTER

The natural RS Gen2 assistance works with you to involve you in the ride, providing aid where it is needed and conserving battery life elsewhere.

Color: Escape Green - Splash ice green gloss

SPECS

FRAME
Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
SHOCK
Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
FORK
Fox 34 Float AWL Sport 140 Rail QR15x110
STEERER TUBE
Alloy 1-1/2", Black Oxidated Bearing

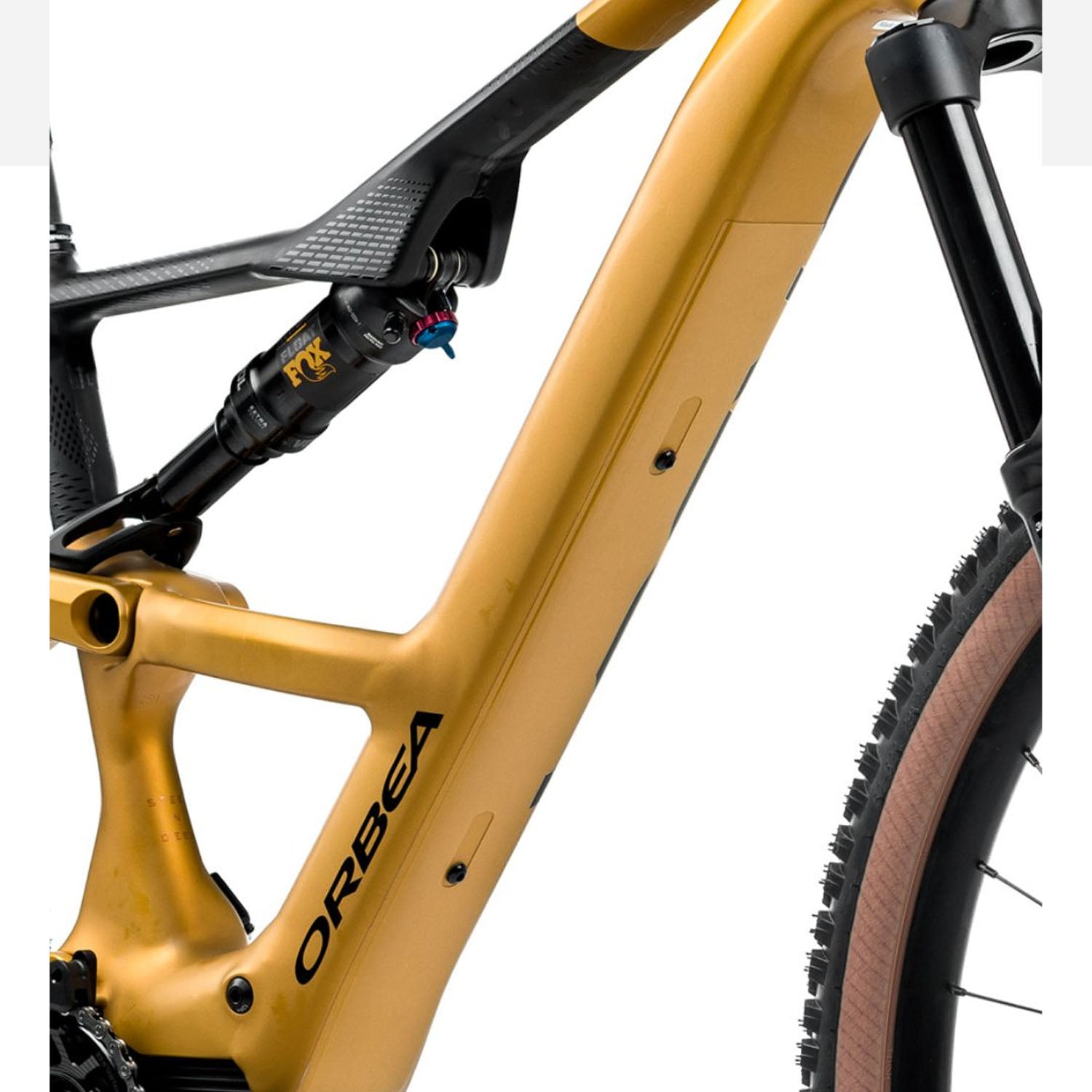

BATTERY
Orbea Internal 630Wh
RANGE EXTENDER
N/A

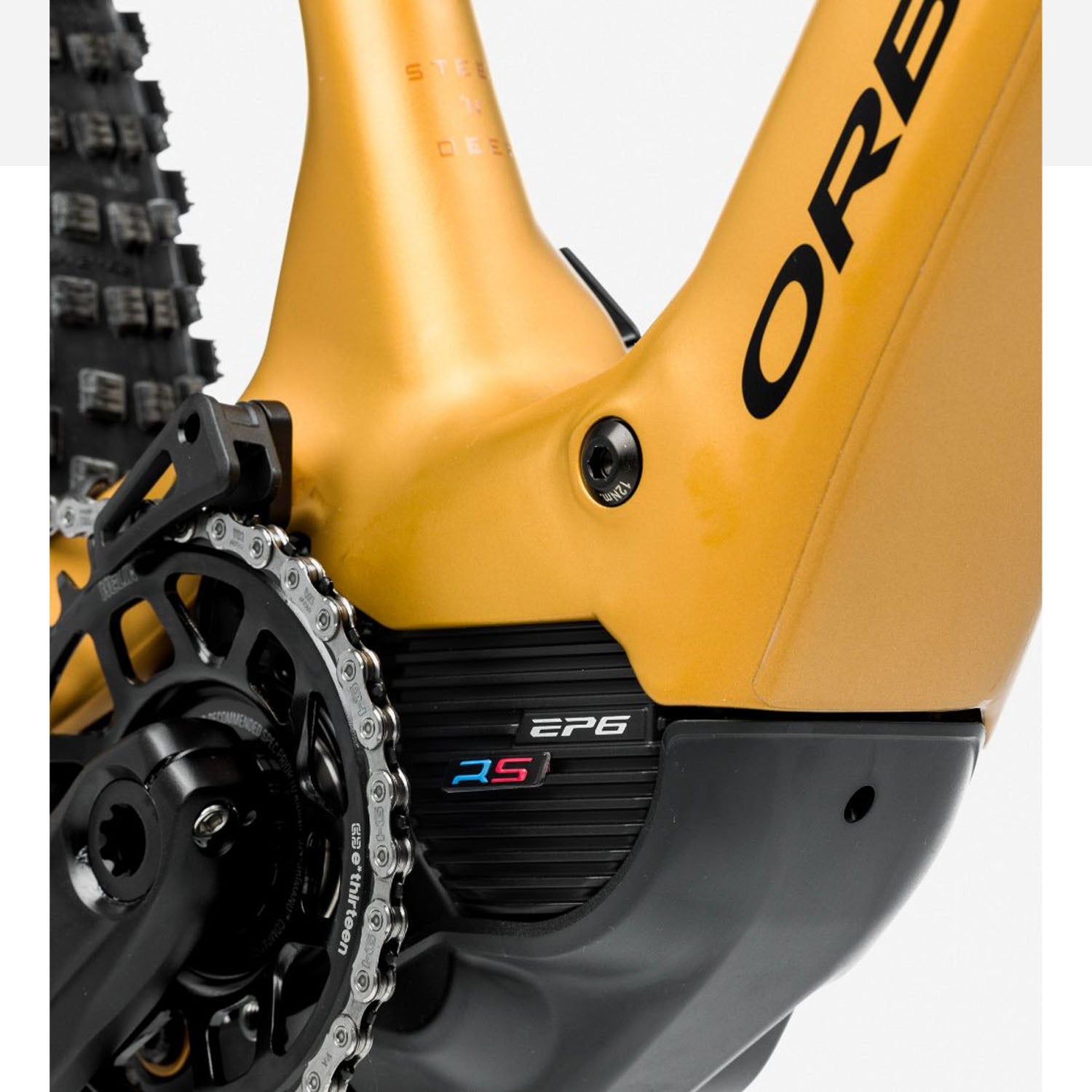

MOTOR
Shimano EP600 RS Gen2 MC
DISPLAY
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
REMOTE
EN600-L
CHAINRING
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
CRANK
Shimano Steps EM600
SHIFTERS
Shimano SLX M7100 I-Spec EV
CASSETTE
Shimano CS-M7100 10-51t 12-Speed
REAR DERAILLEUR Shimano XT M8100 SGS Shadow Plus
CHAIN Shimano M6100
CHAINGUIDE
Orbea eBike chainguide
HANDLEBAR OC Mountain Control MC31, Rise20, Width 800
STEM OC Mountain Control MC20, 0º
COMPUTER MOUNT OC Computer Mount CM-05, Garmin/Sigma
BRAKES Shimano M6100 Hydraulic Disc
ROTORS N/A
BRAKE CONFIGURATION N/A
WHEELS Race Face AR 30c Tubeless Ready
TIRES Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
SEATPOST OC Mountain Control MC22, 31.6mm, Dropper
SEATPOST LEVER Shimano SL-MT500 I-Spec EV
SADDLE Fizik Terra Ridon X5 145mm
GRIPS OC Lock On
