Shimano R 8000 Ulterga Crankset 172.5 52/36 11 speed

SKU: 210000003968
$279.99
By Shimano
Description

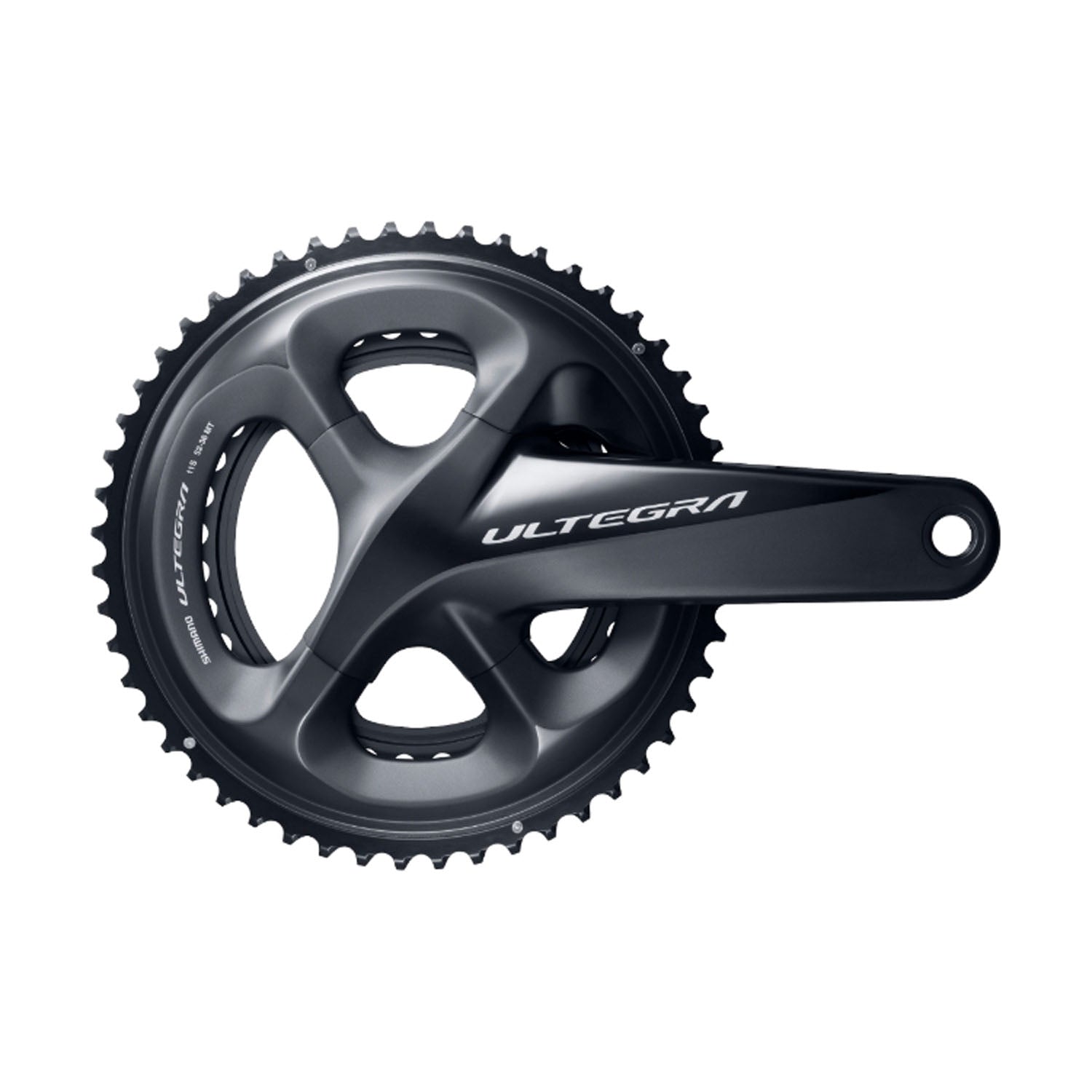

SHIMANO ULTEGRA - HOLLOWTECH II - Road Crankset - 2x11-speed

The all-new SHIMANO ULTEGRA R8000 series crank features lightweight crankarms, a hollow outer chainring, and a wider gear pitch for increased clearance on modern road frames. It is available with 53-39, 52-36, 50-34, and 46-36T chainrings and 165, 170, 172.5, and 175mm crank arm lengths.

FEATURES

  • Lightweight crankarm design optimized for power-transfer efficiency Minimal weight without sacrificing stiffness HOLLOWTECH II
  • Rider-tuned gear performance through various gear combinations
  • Redesigned FC for greater frame compatibility Wider gear pitch increases clearance between chain and leading teeth, providing compatibility with frames of O.L.D. 135 mm and 410 mm chain stay length

SPECIFICATIONS:

MODEL NO
 FC-R8000
SERIES
 ULTEGRA R8000 Series
Color
 Series color
Average weight 668 (46-36T) 674 (50-34T) 681 (52-36T) 690 (53-39T)
Rear speeds 11
Compatible chain LINKGLIDE, HG 11-speed
Chain line (mm) 43.5
P.C.D. left / right (mm) 110
P.C.D. (mm) 110
Spider/gear arms 4
Chainring combination 46-36T, 50-34T, 52-36T, 53-39T
Q-factor (mm) 146
Crank arm length (mm)|165 ✔
Crank arm length (mm)|170 ✔
Crank arm length (mm)|172.5 ✔
Crank arm length (mm)|175 ✔
Optional chain guard|Without chain/bash guard ✔
HOLLOWTECH II ✔
HOLLOWTECH crank arm ✔
HOLLOWGLIDE X, - (46-36T)
Compatible bottom bracket type|Outboard ✔
Recommended bottom bracket|Threaded (normal) SM-BBR60
Recommended bottom bracket|Press-Fit SM-BB72-41B
Threaded bottom bracket shell width (mm)|68 ✔
Threaded bottom bracket shell width (mm)|70 ✔
Crank fixing screw included ✔
